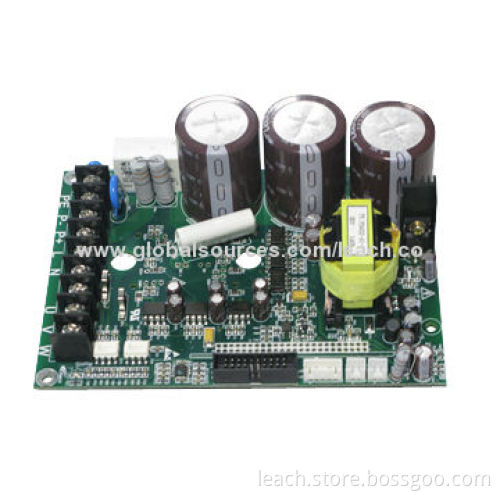

Electronics Manufacturer, Applied in Industrial Systems

Electronics Manufacturer, Applied in Industrial Systems

Get Latest Price

Payment Type:: 50% T/T Deposit and 50% before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	50% T/T Deposit and 50% before Shipment

Product Description

SMT assembly

Our surface mount technology solutions offers a flexible, high technology, these solutions include:

2 set Automatic Printers(S450) with fiducial alignment
2 off SANYO TCM200 High-speed Surface Mount Technology Machine optically aligned chip shooter, components down to 0201
2 off BGA/IC Multifunction SMT Machine: YAMAHA YV100XGP optically aligned shooter, components down to 0201 and including BGA, uBGA, QFN, CSP, POP (Package On Package) and large BGA with size of 32*32mm
2 off HOTFLOW9CR (1 RoHS Reflow Oven/1 Lead Reflow Oven) 8/10 zone convection reflow oven with detailed profiling, chart recording and data logging
The 8/10 zones allow for optimal profile control and provides excellent multi-layer capability
1 set Panasonic SMT programming machine
Utilizing our SMT machines we can place up to 36,000 components per hour all placed by optical alignment to ensure the highest quality standards
We offer full RoHS compliance with no clean processes on all assemblies manufactured to IPC-A-610 Class 2 as standard
AOI Inspection
Leach offer, as standard, Automated Optical Inspection (AOI) on all SMT production batches
Our VCTA-A410 AOI machine offers flexibility, quick simple setup and is capable of optically inspecting

Passive chip components:

Component location and orientation
Component values
Solder fillets of individual terminals

Discretes, ICs and connectors:

Component location and orientation
Component part numbers
Solder fillets of individual leads
Lead spacing inspection
Solder bridge inspection

PTH Assembly

We provide a range of solutions to meet your several PTH (Plated Through Hole) requirements:

We can offer:
- 1 off RoHS Wave soldering machine DA-300LF for Medium to High volume production
- 1 set Weld leg cutting machine MEC MS-139B to ensure the soldering legs even
Testing solutions:
- AOI inspection for All SMT production batches for free
- Functional Test (FCT)
- Visual Inspection
