dual core embedded pc with Intel D525
- Min. Order:
- 1
- Min. Order:
- 1
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 2000 sets |
| Certificate: | CE, FCC, ROHS |
LBOX-525
1.Serial port: 1xRs-485/422/232 +5xRs-232 selectable ports with DB-9 pin connector
2.Digital IOs: 1xVGA , 2xRJ45 for Gigabit Ethernet
3.Support 1xMini-card interconnected with optional WIFi module , 1xMic-in/line-out
Specifications
|
System |
|
|
Processor |
On board Intel Atom D525 |
|
Chipset |
Intel Atom D525 processor + Intel ICH8M |
|
Memory |
Supports 2 x 204-Pin SO-DIMM DDR3 memory slot, supporting Un-buffered Non ECC memory up to 8GB |
|
Storage |
|
|
IDE |
1 x IDE |
|
Serial ATA |
2 x Serial ATA 300MB/S interface |
|
Floppy |
N/A |
|
CF |
1 x Compact Flash Socket Type I/II(front panel) |
|
DOC/DOM |
N/A |
|
I/O Interface |
|
|
USB |
4 x USB2.0 MAX 8xUSB |
|
Serial Port |
6 x RS-232 (COM1 supports RS-232/422/485) |
|
GPIO |
4 x digital input,4 x digital output |
|
Audio |
HD Audio(Including Mic-in, Line-in, Line-out) |
|
Display |
|
|
Chipset |
Intel Atom D525 Integrated 3150 Graphics |
|
Resolution |
VGA mode: up to 2048 x 1536 60Hz |
|
Dual Display |
VGA + LVDS |
|
Ethernet |
|
|
Chipset |
1 x RTL8111D |
|
Speed |
2 x 10/100/1000Mbps |
|
Connector |
2 x RJ45 |
|
Mechanical and Environmental |
|
|
Dimensions |

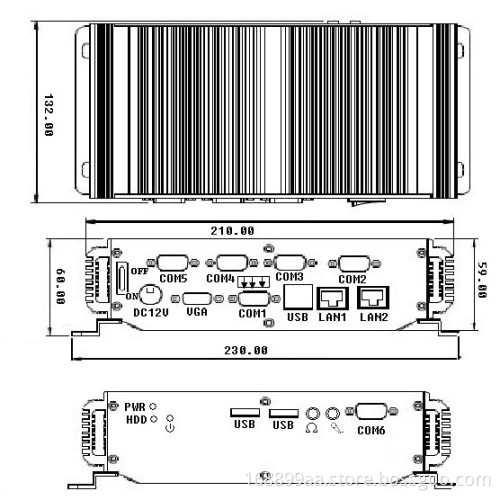

210mm (L) x 125.8mm (W) x 60mm (H) |
|
Operating Temperature |
-20~75 (Celsius degree) |
|
Storage Temperature |
-40~80 (Celsius degree) |
|
Operating Humidity |
5% ~ 90% (non-condensing) |
|
Power |
|
|
Power Supply |
Supports +12V DC input or adapter with 220W DC input |
|
Power Consumption |
Power Consumption 18 W (Standby) . |
|
Operating System |
|
|
Windows OS |
Windows2000/Windows XP/Windows 7 |
|
Embedded OS |
Windows Xp |
|
Test |
|
|
Vibration |
519Hz/1.0mm amplitude 19200Hz/1.0g acceleration |
|
Shock |
15g acceleration, 11ms duration |
|
EMC/EMI |
GB9254-20088 Class A |
