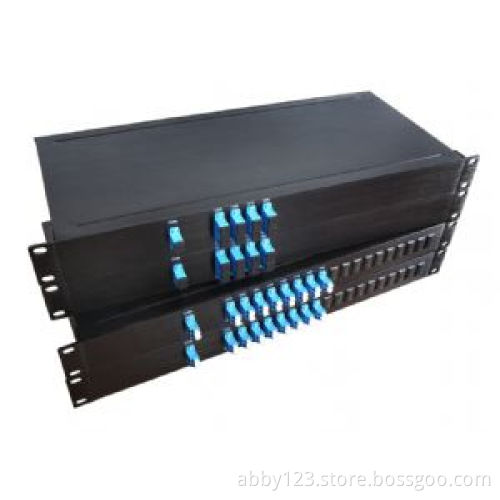

100G DWDM N-CH Packed in 19-in 1U Rackmount
Flyin's DWDM module offer a few different kinds of packages.If you need customized DWDM module or system,we can offer you the suitable ones.(ABS box packed DWDM or DWDM single components are also offered.)
Features
l Low Insertion Loss
l Wide pass band
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path
Applications
l Channel Add/Drop
l DWDM Network
l Wavlength Routing
l Fiber Optical Amplifier
l CATV fiberoptic System
Performance Specifications
|
Parameter |
4 Channel |
8 Channel |
16 Channel |
||||||
|
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
||||
|
Channel Wavelength (nm) |
ITU 100GHz Grid |
||||||||
|
Center wavelength Accuracy (nm) |
0.1 |
||||||||
|
Channel Spacing (nm) |
100 |
||||||||
|
Channel Passband (@-0.5dB bandwidth (nm) |
>0.25 |
||||||||
|
Insertion Loss (dB) |
1.8 |
3.7 |
5. 5 |
||||||
|
Channel Uniformity (dB) |
0.6 |
1.0 |
1.5 |
||||||
|
Channel Ripple (dB) |
0.3 |
||||||||
|
Isolation (dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
N/A |
>30 |
||
|
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
N/A |
>40 |
|||
|
Inertion Loss Temperature Sensitivity (dB/) |
<0.005 |
||||||||
|
Wavelength Temperature Shifting (nm/) |
<0.002 |
||||||||
|
Polarization Dependent Loss (dB) |
<0.1 |
<0.1 |
<0.15 |
||||||
|
Polarization Mode Dispersion |
<0.1 |
||||||||
|
Directivity (dB) |
>50 |
||||||||
|
Return Loss (dB) |
>45 |
||||||||
|
Maximum Power Handling (mW) |
300 |
||||||||
|
Opterating Temperature () |
-5~+75 |
||||||||
|
Storage Temperature () |
-40~85 |
||||||||
|
Package dimension (mm) |
L100 x W80 x H10 |
L142 x W102 x H14.5 |
|||||||
Specifications may change without notice.
Above specification are for device without connector.
Ordering Information
|
DWDM |
X |
XX |
X |
XX |
X |
X |
XX |
|
|
Channel Spacing |
Number of Channels |
Configuration |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
1=100GHz |
04=4 Channel 08=8 Channel 16=16 Channel |
M=Mux D=Demux |
21=Ch21 -- 34=Ch34 -- 50=Ch50 -- |
1=Bare fiber 2=900um Loose tube 3=2mmCable 4=3mmCable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
