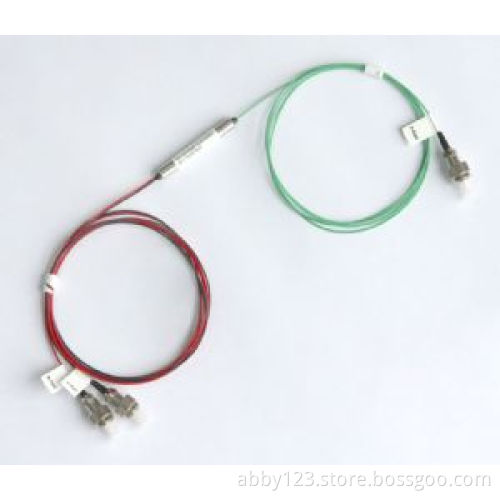

100G,200G DWDM Optical Add-Drop Multiplexer (1x2 DWDM OADM)
Flyin optronics` 100GHz/200GHz 1x2 wavelength multiplexer utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Features
l Low Insertion Loss
l Wide pass band
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path
Applications
l Channel Add/Drop
l DWDM Network
l Wavelength Routing
l Fiber Optical amplifier
l CATV fiberoptic System
Performance Specifications
|
Parameter |
MUX/DEMUX |
||
|
Channel Wavelength (nm) |
ITU Grid |
||
|
Center wavelength Accuracy (nm) |
0.5 |
0.1 |
|
|
Channel Spacing (nm) |
100 |
200 |
|
|
Channel Passband (@-0.5dB bandwidth (nm) |
>0.22 |
>0.5 |
|
|
Pass Channel Insertion Loss (dB) |
1.0 |
0.9 |
|
|
Reflection Channel Insertion Loss (dB) |
0.6 |
0.6 |
|
|
Channel Ripple (dB) |
<0.3 |
||
|
Isolation (dB) |
Adjacent |
>30 |
|
|
Non-adjacent |
>40 |
||
|
Inertion Loss Temperature Sensitivity (dB/) |
<0.005 |
||
|
Wavelength Temperature Shifting (nm/) |
<0.002 |
||
|
Polarization Dependent Loss (dB) |
<0.1 |
||
|
Polarization Mode Dispersion |
<0.1 |
||
|
Directivity (dB) |
>50 |
||
|
Return Loss (dB) |
>45 |
||
|
Maximum Power Handling (mW) |
500 |
||
|
Opterating Temperature () |
-10~+75 |
||
|
Storage Temperature () |
-40~85 |
||
|
Package dimension (mm) |
5.5x34 (L38 for 900um Loose tube) |
||
Specifications may change without notice.
Above specification are for device without connector.
Ordering Information
|
DWDM |
X |
XX |
X |
X |
XX |
|
|
ITU |
Pass Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
1=100G 2=200G |
01=Ch01 02=Ch02 -- 60=Ch60 |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m
|
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
