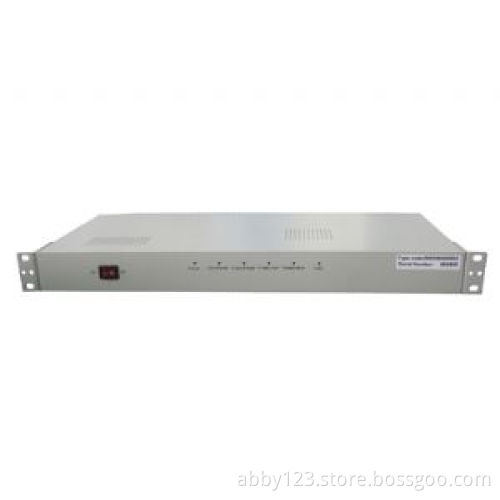

EDFA
Flying Optronics` Erbium-doped fiber amplifier (EDFA) is widely used in optical fiber communication system is an important device. Erbium-doped fiber amplifier (EDFA) in optical fiber communication systems are generally used for the preamplifier, power-up and online to enlarge.
Features
l High output power
l Output power tunable
l Low NF
l RS-485.RS-232 network interface
l Multi power supply (Rack Mount);
l AC:220V-110V,DC:-48V
Application
l CATV system
l Access network
l IP ATM SDH Network
l Digital communication network
l DWDM system
Performance Specifications
CATV-EDFA
Parameter
Unit
Min
Typ
Max
Operating Wavelength
nm
1530
1550
1560
Input Power
dBm
-3
10
Output Power
dBm
24
Noise Figure
dB
5.0
Input/Output Isolation
dB
30
Input/Output Return Loss
dB
60
Voltage
Rack Mount:90~260V AC,-48V DC
Module Type: 5V DC
Dimension
mm
Rack Mount:(W x L x H)
482.6 x 319 x 43.6
Module Type:(W x L x H)
150 x 125 x 24
SDH EDFA
Parameter
Unit
Min
Typ
Max
Operating Wavelength
nm
1530
1550
1565
Input Power
2.5G or below
dBm
-6
4
10G
-10
4
Output Power
dBm
19
Output Tunable Range
dB
6
Noise Figure
dB
5
Input/Output Isolation
dB
30
Input/Output Return Loss
dB
45
DWDM-EDFA
Parameter
Unit
Min
Typ
Max
Operating Wavelength
16 Band 16 Channel
nm
1546
1561
32 Band 32 Channel
1535
1562
40 Band 40 Channel
1528
1565
Input Power
OBA
dBm
-14
-5
OPA
-38
-5
Output Power
dBm
23
Gain
dB
14
33
Noise Figure
OBA
dB
5.0
OPA
4.5
Gain Flatness
dB
1.0
Pre-Amplifier(with OTF or Fixed Filter)
Parameter
Unit
Min
Typ
Max
Operating Wavelength
Tunable filter
nm
1530
1560
Fixed filter
1550.12
Input Power
dBm
-47
-15
Output Power
dBm
-7
0
Output Tunable Range
dB
6
Noise Figure
dB
4.5
Input/Output Isolation
dB
30
Input/Output Return Loss
dB
45
Ordering Information
FLYEDFA
SO
X
X
XX/XX
X
Package
Amplifier Type
Application
Rated output power(dBm)/ Gain(dB)
Interface Type
SO=1U rack-mount package
B=Poweramplifier
P=Preamplifier
L=Line amplifier
RW=Red-Band DWDM
CW32=C-Band 32CHDWDM
CW40=C-Band 40CHDWDM
LW=L-Band DWDM
S=Digital transmission
C=CATV
XX/XX=custom
Example:
16/20=output16dBm/Gain20db
1=FC/UPC
2=FC/APC
3=SC/UPC
4=SC/APC
