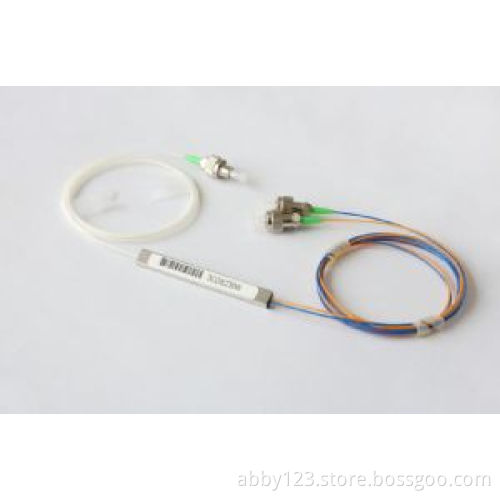

PLC Splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Flyin Optronics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features
l Low Insertion loss
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength: From 1260nm to 1650nm
l Wide Operating Temperature: From -40 to 85
l High Reliability and Stability
Applications
l FTTX Systems
l PON Networks
l CATV Links
l Optical Signal Distribution
Compliance
l Telcordia GR-1209-CORE
l Telcordia GR-1221-CORE
l RoHS
Specifications
1N PLC Splitter
|
Parameters |
12 |
14 |
18 |
116 |
132 |
164 |
1128 |
|
Operating Wavelength (nm) |
1260-1650 |
||||||
|
Fiber Type |
G657A1 or customer specified |
||||||
|
Insertion Loss (dB)(P/S Grade) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
23.8/24.2 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
Return Loss (dB)(P/S Grade) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss (dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability (-40-85 )(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature () |
-40-85 |
||||||
|
Storage Temperature () |
-40-85 |
||||||
|
Device Dimension (mm) |
4044 |
4044 |
4044 |
5044 |
5074 |
60124 |
N/A |
|
Module Dimension (mm) |
1008010 |
1008010 |
1008010 |
1208018 |
14011518 |
14011518 |
14011518 |
|
Mini-Module Dimension (mm) |
5074 |
5074 |
5074 |
60124 |
80206 |
100406 |
N/A |
Notes:
1. Specified without connectors.
2. IL will be 0.15dB higher with connectors.
3. For more information about 2xN PLC splitter, please refer to our PDF datasheet.
Ordering information
|
PLC |
XXXX |
X |
X |
X |
X |
X |
X |
|
Port |
Input Pigtall Style |
Input Connector |
Output Pigtll Style |
Fiber Length |
Output Connector |
Package type |
|
|
PLC |
0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64 1128=1x128 0204=2x4 0208=2x8 0216=2x16 0232=2x32 0264=2x64 2128=2x128 |
0=bare fiber 1=900um Loose tube 2=900um Jacket 3=2.0mm cable 4=3.0mm cable |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 S=Special |
0=bare fiber 1=900um Loose tube 2=900um Jacket 3=2.0mm cable 4=3.0mm cable |
0=0.5m 1=1m 2=1.5m 3=2m 4=3m 5=4m S=special |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 S=Special |
A=4X4X40 B=4X7X50 C=4X12X60 D=4X7X60 E=6X20X80 F=100X80X10 G=120X80X18 H=140X115X18 I=19"1U Rack S=Special |
