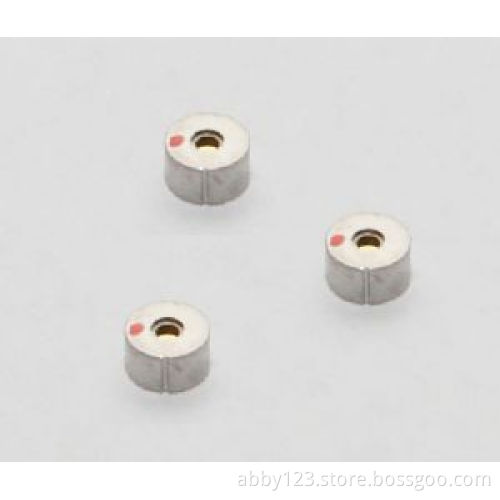

Free Space Isolator
Free Space Isolator
Features:
l High Isolation
l Polarization Dependent
l Compact Size
Applications:
l Laser Doide Packaging
l Optical Transmitter & Transceivers
Performance Specifications (Standard)
|
Parameter |
Unit |
Single Stage |
Dual Stage |
|
|
Center Wavelength |
nm |
1310 1550 |
||
|
Typical Isolation (at 23) |
Min |
dB |
40 |
60 |
|
Isolation (at 23) |
Min |
dB |
38 |
55 |
|
Isolation (-20 to 85 ) |
Min |
dB |
22 |
40 |
|
Insertion Loss (at 23) |
Typical |
dB |
0.18 |
0.30 |
|
Max |
dB |
0.25 |
0.35 |
|
|
Clear Aperture |
nm |
0.8 or customer |
||
|
Optical Power |
Max |
mW |
500 |
|
|
Operating Temperature |
|
-20 to +85 |
||
|
Storage Temperature |
|
-40 to +85 |
||
|
Parameter |
Unit |
Single Stage |
Dual Stage |
|
|
Center Wavelength |
nm |
CWDM Wavelength |
||
|
Typical Isolation (at 23) |
Min |
dB |
40 |
60 |
|
Isolation(at 23 ) |
Min |
dB |
38 |
55 |
|
Isolation(-20 to 85) |
Min |
dB |
22 |
40 |
|
Insertion Loss ( at 23 ) |
Typical |
dB |
0.20 |
0.35 |
|
Max |
dB |
0.30 |
0.40 |
|
|
Clear Aperture |
mm |
0.8 or customer |
||
|
Optical Power |
Max |
mW |
500 |
|
|
Operating Temperature |
|
-20 to +85 |
||
|
Storage Temperature |
|
-40 to +85 |
||
Ordering information
|
FSI |
X |
X |
XX |
XX |
|
|
Type |
Grade |
Wavelength |
Size ( L ) |
|
|
S=Single Stage D=Dual Stage |
P=Prenim A=Grade A |
13=1310nm 14=1480nm 15=1550nm SS=Others |
1=2.5*1.1 2=2.5*1.4 3=3.0*1.4 4=2.5*3.0 5=3.0*3.3 6=3.0*2.5 X=customer |
