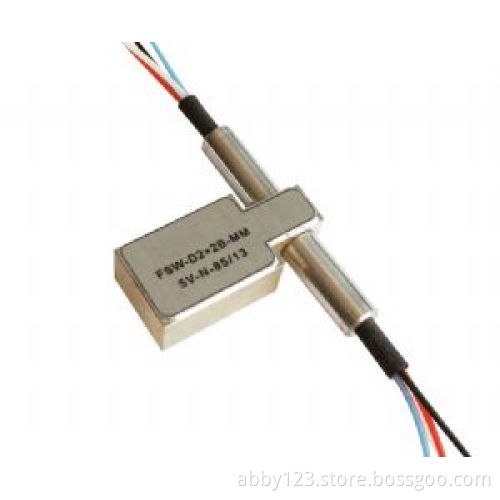

D22B Mechanical Fiber Optic Switch

Model : DFOS22

Flyin Optronics` D22B Mechanical Fiber Optic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.

Features

l Low Insertion Loss

l Wide Wavelength Range

l Low Crosstalk

l High Stability, High Reliability

l Epoxy-free on Optical Path

Application

l Metropolitan Area Network

l R&D in Laboratory

l System Monitor

l Configurable OADM

Performance

Parameters		FY-D22B
Wavelength Range	nm	670-980	1260-1650
Operating Wavelength	nm	670/785/850/980	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.8 Max:1.2	Typ:0.6 Max:1.0
Return Loss	dB	MM30 SM50
Crosstalk	dB	MM30 SM55
PDL	dB	0.05
WDL	dB	0.25
TDL	dB	0.25
Repeatability	dB	0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	107
Switch Time	ms	8
Transmission Power	mW	500
Operating Temperature		-20-+70
Storage Temperature		-40-+85
Weight	g	16
Dimension	mm	(L)27.0(W)12.6(H)8.0(0.2mm) customization is available.

Electric

Specifications	Voltage	Current	Resistance
5V Latching	4.5~5.5	36~44mA	125
5V Non-latching	4.5~5.5	26~32mA	175
3V Latching	2.7~3.3	54~66mA	50
3V Non-latching	2.7~3.3	39~47mA	70

Pins

Control model	Optical Path	Electric Drive				Status Sensor
D22B	Light Pin	1	5	6	10	2-3	3-4	7-8	8-9
Non-latching	P1-P3 P1`-P3`	--	--	--	--	Close	Open	Open	Close
Non-latching	P1-P4 P1`-P4` P3-P2 P3`-P2`	V+	--	--	GND	Open	Close	Close	Open
