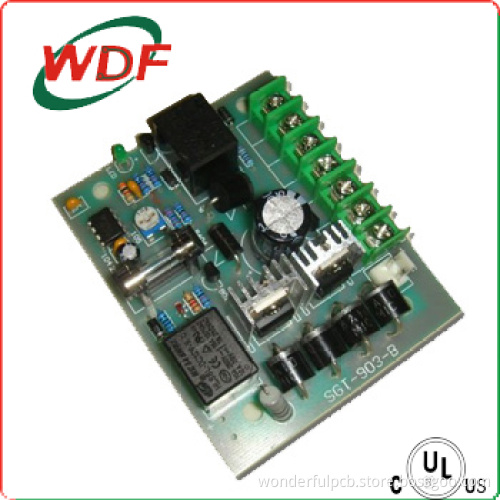

Electronic pcba manufacturer and pcb manufacture

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Electronic pcba manufacturer and pcb manufacture
Certificate:	UL, ISO 9001, ISO 14001

Product Description

Electronic pcba manufacturer and pcb manufacture

1. ONE-STOP-SERVICE

2. OEM service

3. Gerber file needed

4. PCB clone with sample

5. Quality guarantee and professional after-sell service

Our Production Capability for PCB:

Layer	1 to 28 layers
Material type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board thickness	0.21mm to 7.0mm
Copper thickness	0.5 OZ to 7.0 OZ
Copper thickness in hole	>25.0 um (>1mil)
Size	- Max. Board Size: 23 25 (580mm900mm)
	- Min. Drilled Hole Size: 3mil (0.075mm)
	- Min. Line Width: 3mil (0.075mm)
	- Min. Line Spacing: 3mil (0.075mm)
Surface finishing	HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
Solder Mask Color	Green/Yellow/Black/White/Red/Blue
Tolerance	- Shape tolerance: 0.13
	- Hole tolerance: PTH: 0.076 NPTH: 0.05
PCB Packing	- Inner packing: Vacuum packing / Plastic bag
	- Outer packing: Standard carton packing
Certificate	UL, ISO 9001, ISO 14001
Special requirements	Buried and blind vias+controlled impedance +BGA
Profiling	Punching, Routing, V-CUT, Beveling
Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.
