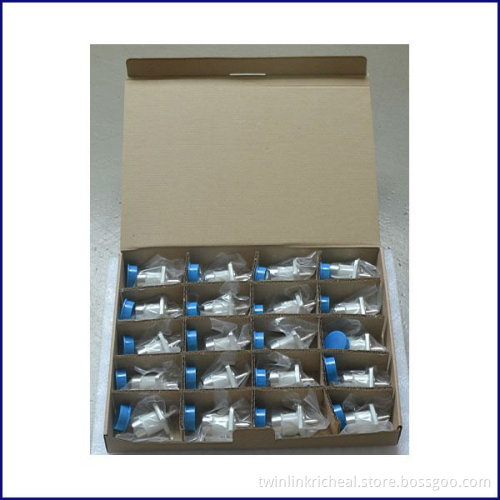

BNC rf connector
- Min. Order:
- 1000
- Min. Order:
- 1000
- Delivery Time:
- 10 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | china |
|---|---|
| Certificate: | ISO9001 ISO14001 RoHS |
Product Description
Product Description
| Electrical specification | |
| Characteristic Impedance: | 50ohm |
| Frequency Range: | DC-4GHz |
| Dielectric withstanding Voltage (at sea level) | 1500V rms, 50Hz (depending on cable) |
| Working voltage (at sea level) | 500V rms, 50Hz (depending on cable) |
| Insulation resistance | <= 5000 mohm |
| Contact resistance | centre contact>=1.5mohm |
| outer contact: >= 1 mohm | |
| RF-leakage (between 2-3 GHz) | <=55 dB |
| Mechanical Specification | |
| Bodies | Brass--Ni plating |
| Pin contacts | Brass--Au / Ag plating |
| Socket contacts | Copper--beryllium Au / Ag plating |
| Crimp ferrules | Copper alloy--Ni plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
| MECHANICAL DATA | |
| Coupling nut torque | 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs |
| Coupling nut retention force | <=450N / 101.2 lbs |
| Contact captivation | <=27N / 6.1 lbs |
| Durability (matings) | <=500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65oC to +165oC |
