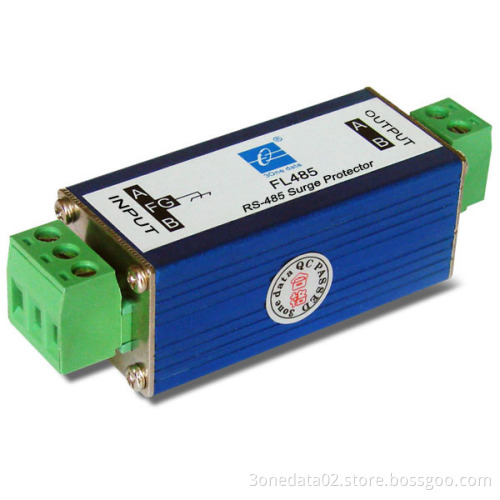

RS-485 Surge Protector

Features 1. Three stages of protection on every data line 2. Protected signal ground connection 3. Easy to install, plug-and-play 4. 4500V surge protection Introduction IEC61000-4-5 and ITU-TK20&K21 are the recognized standards for top quality surge protectors, FL485 have high respond speed, low output rudimental voltage, ascendance transfer performance. All have #10 ground screws which must be connected to a solid ground. Specification Standard: Accord EIA RS-485 standard RS485 signal: IEC6100-4-5 and ITU-TK20&21 Working voltage: 0-5V Limit voltage: <15V Apply Band rate: 1Mbps Isolate signal: TXD, RXD, GND Connector: Standard industrial terminal block Insert consumption: <0.5dB Delay time: <1ns Environment Working temperature:-20 to 60 Storage temperature:-25 to 85 Humidity: Relative humidity 5% to 95% Power Input powered: No power supply needed Consumption: No consumption Dimension L x W x H: 80mm x 25mm x 22mm Shell: Alnico Color: Blue Weight:10g Warranty: 5 years Approvals: FCC,CE, RoHS approvals
