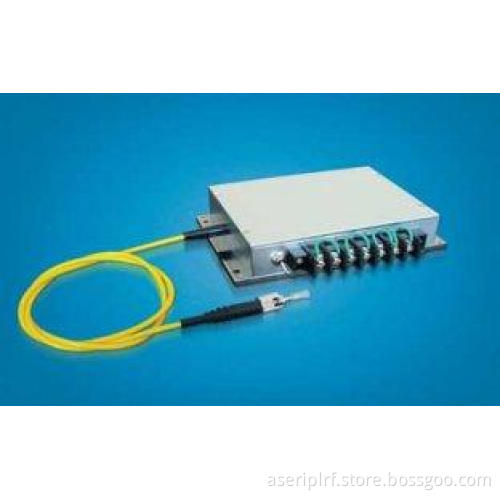

808nm Laser Diode K81D06M-10.00W

Specifications（25℃）

Symbol

Unit

K81D06M-10.00W

K81D06M-15.00W

Optical data

CW-output power⁽¹⁾

P_O

W

10

15

Center wavelength

l_c

nm

808

Tolerance of l

-

nm

±3,±10

Temperature drift of l

-

nm/℃

~0.3

Fiber data⁽²⁾

Fiber core diameter

W_c

µm

375

Numerical aperture

NA

-

0.22

Fiber connector

-

-

FC, ST, SMA-905

Electrical data

Operation current

I_op

A

2.5

Threshold current

I_th

A

0.40±0.04

Conversion efficiency

η

%

40

Slope efficiency

η_D

W/A

4.8

7.0

Operation voltage

V_op

V

~10.0

~14

Reverse voltage

V_re

V

~10.0

~14

PD data⁽³⁾

Current

I_mo

mA

2.0

2.8

Aiming beam data

Output power

P_a

mW

>2⁽⁴⁾

Wavelength

l_a

nm

650±10

Others

Operation temperature

T_op

℃

10~30

Storage temperature

T_st

℃

-20~+80

Expected lifetime

MTBF

h

>10,000

Dimensions

(fiber and connector not included)

-

mm

123×80×25

Weight

-

g

~600
