Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 1000Pcs every week |
| Certificate: | CE |

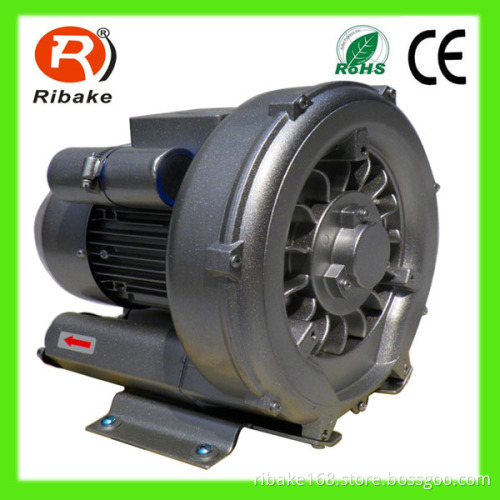

Single phase high pressure air blower
Advantages
- Wide voltage and double frequency
- In protection class IP55, insulation class F
- Perfect surface
- Easy installation
- 100% oil free
- Low noise level
- No vibration and complete dynamic stability
- Pulsation-free discharge
- Higher pressure ratio
- Cooler running NSK bearings
- Temperature resist to 180°c
- Work 20,000 hours without maintenance
- 12 month warranty
- Suitable for environmental protection
- Available in stock
Technology data (2BHB310-A11)
| Model | Frequency(Hz) | Rated power(KW) |
Rated voltage (V) |
Rated current (A) |
Maximum airflow (m3/h) |
Maximum vacuum (mbar) |
Maximum pressure (mbar) |
Weight(Kg) | Sound(db) |
|
2BHB310-A11 |
50 |
0.7 |
200-240 |
4.8 |
100 |
-150 |
150 |
14 |
55 |
|
2BHB310-A11 |
60 |
0.83 |
220-240 |
4.1 |
120 |
-150 |
160 |
14 |
57 |
Operating principle
The gas is taken in through the inlet 1,As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy,resulting in the further increase.Everyrotation adds kinetic energy,resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and discharging it through the outlet silencer 4 where it exits where it exits the side channel blower.
Product Features
1.Designed and improved by the latest Europe technology,molded with high strengh ADC12 aluminum alloy,processed on precision CNC machine.
2.Two-pole motor with protection calss IP and insulation F,high temperature resistant to 180°c.
3.Motor reached Europe EFF2 standard,save more electricity,and more durable.
4.In front bearing structure makes dynamic stability.
5.The rotating parts are not in contact with the casing,no friction during operation,no internal lubrication needed.
6.All products ard strictly tested befored leaving the factory,such as no-load test,impulse winding test,frequency withstand voltage test etc.for motor.Pressure,airflow,noise test for blower.
Product Applications
Ribake high pressure air blower have two major function,blowing and indraft.Ribake air blowers are suitable for all these applications requiring considerably higher pressure that which can be achieved using centrifugal fans.
It's widely used in environmental equipment,wastewater treatment,printing industry,bulb industry,aquatic breeding,plastic welding,chemical industry,electroplating,feeding material packing,textile,and glass utensil manufacture.
Blow,hoover,exhaust,cool,transport,air cushion
