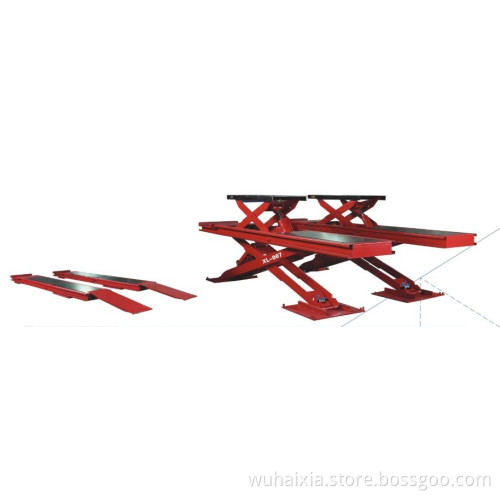

MST-XL-007 Double-Deck Scissor Lift

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

MST-XL-007 Double-Deck Scissor Lift

Features:

1. Use imported thydraulic components, and synchronization performance is good

2. Each movement position has its high-quality self-side bearing

3. All the steel with reliable quality is purcharsed from the well-known manufacturer

4. Both extension unit and baseunit adopt double insurances include hydraulic insurance and mechanical insurance, so as to ensure safety

5. The electrical control is at 24VDC safe voltage, that makes the operation safer

6. The printer circuit board control is adopted; this board has a circuit to suppress surges; the germinal is marked with the load name; and the work indictor lamp is set

Technical parameter

Item	Parameter	Item	Parameter
Max. Load	3000kg	Pump Station	Imported pump station, Italian Hydraulic valves
Lifting Time	50s	Fall Time	60s
Min. Height	165mm	Max. Height	Upset: 450mm, Downset: 1550mm
Control Voltage	24VDC	Solenoid Valve Coil
Power Supply	3Ph 380V, 50-60Hz	Motor Power	380V/50HZ, 2.2KW (or 220V)
Air Pressure	3-5KG/CM2	Hydraulic Oil	46# Anti-wear Hydraulic Oil
