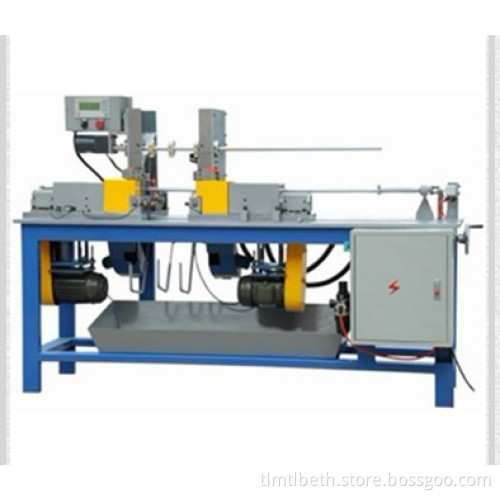

Automatic turning machine for heating element tubular heater

Detailed Product Description

Used to remove plastic plug from heating element

Cut the heating elements to same length
Stable performance

Functions:

1. PLC control, human-computer interface operation. One person can operate three or four machines simultaneously.
2. Automatic feeding and centering to ensure the two ends cutting length will be same and get the required length.
3. Show how to clear the error automatically.

Main technical parameters:

1. Power supply: 3phase 380V, 50Hz (can be custom-made)
2. Rated power: 1.6KW
3. Air supply: 5-7kg/cm²
4. Applicable tube diameter: 5.2mm-15mm
5. Applicable tube length: 110-1500mm
6. Efficiency: 5500pcs/8h (below tube length 500mm)
7. Packing size (L*W*H): 2700*880*1650(mm)
8. Gross weight: 450kg
