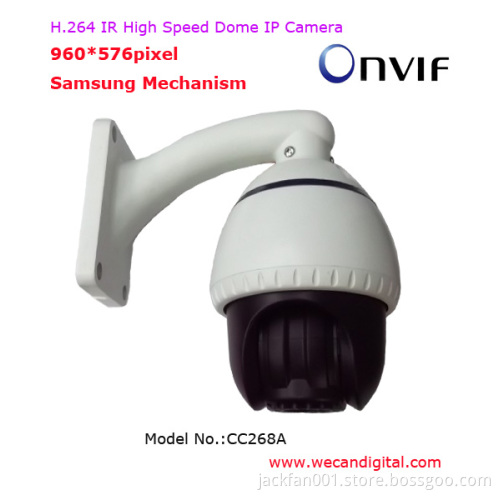

H.264 Mini High Speed Infrared Dome IP Camera

Features:

1. Compatible for Axxon,NUUO,Ivideon,VLC media player,Milestone,Avigilon and other client software;

2. High Speed PTZ IP Camera;

3. 1/4 inch, Interline Transfer CCD;

4. Optic 10x,Digital 10x Zoom;

5. Support ONVIF;

6. Auto / Day / Night (ICR);

7. 30pcs of 5Ф infrared lights, visual distance over 30m at night;

8. Samsung mechanism;

9. POE optional.

Specifications:

Network and Video Spec:

Video compression:H.264 Main Profile @Level 3

Processor:Hi3507

Video resolution:PAL:960*576,704*576(4CIF),704*288(2CIF),352*288(CIF),176*144(QCIF)

       NTSC:960*480,704*480(4CIF),704*240(2CIF),352*240(CIF),176*120(QCIF)

Video Frame Rate:PAL: 1-25frames/second

       NTSC:1-30frames/second

Video Compression Bit rate:16-8000kbps

Supported Protocols:TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTSP,IPV4

Streaming Format:Video Streaming or Audio &Video composite Streaming

Audio Compression:G.711

Audio input:1 channel

Audio output:1 channel

Title OSD:Support

Alarm Input:1channel,Optional

Alarm Output:1 channel,Optional

E-mail Alarm:Support

Speed Dome Spec:

Mechanism:Samsung,10*10x

Pan / Tilt Range:Pan: 360°(Endless), Tilt: 180°(Auto Flip),95°(Normal)

Pan / Tilt Speed:Preset: 360°/sec,Swing: 1~180°/sec

       Manual: 0.05~360°/sec(Proportional to zoom)

Preset:127 Preset ( Label, Camera Image Setting )

Pattern:4 Patterns, 1200 commands ( About 5 minutes)/Pattern

Swing:8 Swing

Group:8 Groups ( 20 actions entities per group )

Other Functions:Auto flip, Auto parking, Power up action etc

Communication:RS-485

Protocol:Pelco-D, Pelco-P selectable

Privacy Zone:4 zones

Alarm Input:4 Inputs

OSD:Menu / PTZ information etc

Camera Spec:

CCD:1/4" Interline Transfer CCD

Max. Pixels:811(H)×508(V)410K NTSC

       795(H)×596(V) 470K PAL

Effective Pixels:768(H)×494(V) 380K NTSC

       752(H)×582(V) 440K PAL

Horizontal Res.:500 TVL(Color),570 TVL(B/W)

S/N Ratio:50dB(AGC Off)

Zoom:10X optical zoom, 10X digital zoom

Focal Length:F1.8, f=3.8~38mm

Min. Illumination:0.7Lux (Color), 0.02Lux (B/W), 50 IRE

Day & Night:Auto / Day / Night (ICR)

Focus:Auto / Manual / Semi-Auo

Iris:Auto / Manual

Shutter Speed:128X~1/120000 sec

AGC:Normal / High / Off

White Balance:Auto / Manual / (Red, Blue Gain Adjustable)

BLC:Low / Middle / High / Off

Flicker less:Selectable

SSNR:Low / Middle / High / Off

Environmental Spec:

Operating Temp:-10 °C ~ + 70 °C

Operating Humidity:10 ~85%

Rated Power:DC12V / 1A,

Dome dimensions:Dome: φ120*190mm

Dimensions with bracket(L*W*H):120*195*190mm

N. Weight:1.45kg
