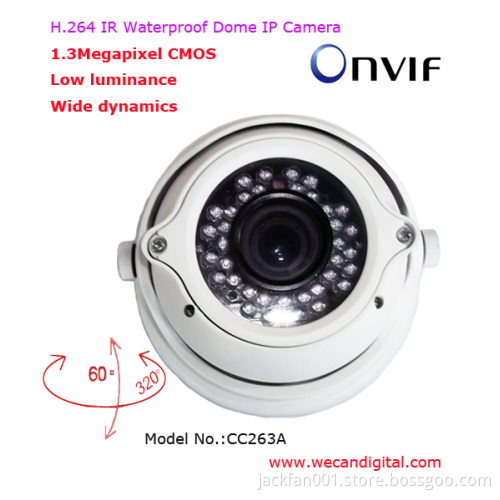

H.264 1.3Megapixel Infrared Waterproof Dome IP Camera

Features:

1. Compatible for Axxon,NUUO,Ivideon,VLC media player,Milestone,Avigilon and other client software;

2. 1.3Megapixel CMOS Sensor;

3. H.264 Main Profile compression algorithm;

4. 1280*720P resolution real-time output;

5. Support ONVIF;

6. 36 pcs of 8Ф infrared lights, visual distance over 50m at night;

7. Waterproof design IP66;

8. Low luminance, wide dynamics.

9. POE optional.

Specifications:

Sensor type: 1/4" 1.3Megapixel HTM1375 CMOS

Effective pixel:1280*720P

Lens:6mm or 8mm,1.3 Megapixel

Electronic shutter:1/25s-1/100,000s

Lowest luminance:Color: 0.03Lux@F1.2,Black&white: 0.003Lux@F1.2

Infrared Light:36pcs of Ф8 infrared lights, visual distance over 50m at night

Day-night switch mode:Support

Wide dynamics:Support

Video parameter:Saturation,brightness,contrast ratio and color tone can be adjusted by customer end or IE explorer

Video compress:H.264 Main Profile@Level 3.0

Video bit rate:16-8000kbps, customized

Bit stream type:Compound streams / video stream

Audio compress:G.711

Audio bit rate:8-16kbps

Triple bit streams:Support

Video resolution: 1280*720P,704*576P,352*288P,176*144P
Video flame rate:1-30 frames/second

Heartbeat mechanism:Support

Password protection:Multi-level protection on password

Intellectual alarm:Mobile detection,video shielding,video loss,network breakdown,abnormality in storage

Basic functions:One-key reset, password protection, watermark technology

Network Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS,FTP,802.1x

Audio input:1 channel

Audio output:1 channel

Network port:1 pc, RJ45 10M/100Mbps self-adaptable Ethernet port

Serial port :1 pc, standard RS485 serial port,optional

Alarm input:1 channel switch,optional

Alarm output:1 channel switch,optional

OSD:Support

ONVIF:Support

Cell phone monitor:Support

Work Environment:Indoor or outdoor

Power supply:DC12V/1.0A

POE power supply:Optional

Power consumption:<8W

Working temp:-10 °C ~ + 70 °C

Working humidity:10 ~ 85%

Dimensions(L*W*H):φ150*114 mm

Weight: 1.12Kg
