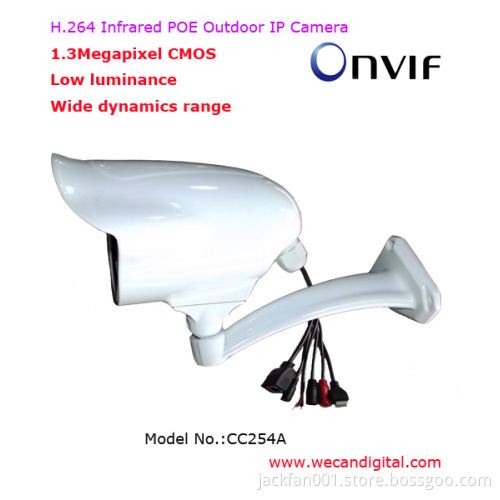

H.264 1.3Megapixel Infrared Waterproof IP Camera
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 50000 |
| Certificate: | CE,ROHS |
Features:
1. Compatible for Axxon,NUUO,Ivideon,VLC media player,Milestone,Avigilon and other client software;
2. 1.3Megapixel CMOS Sensor;
3. H.264 Main Profile compression algorithm;
4. 1280*720P resolution real-time output;
5. Support ONVIF;
6. 36 pcs of 8Ф infrared lights, visual distance over 50m at night;
7. Waterproof design;
8. Low luminance, wide dynamics;
9. POE Optional.
Specifications:
Sensor type: 1/4" 1.3Megapixel HTM1375 CMOS
Effective pixel:1280*720P
Lens:6mm or 8mm,1.3 Megapixel
Electronic shutter:1/25s-1/100,000s
Lowest luminance:Color: 0.03Lux@F1.2,Black&white: 0.003Lux@F1.2
Infrared Light:36pcs of Ф8 infrared lights, visual distance over 50m at night
Day-night switch mode:Support
Wide dynamics:Support
Video parameter:Saturation,brightness,contrast ratio and color tone can be adjusted by customer end or IE explorer
Video compress:H.264 Main Profile@Level 3.0
Video bit rate:16-8000kbps, customized
Bit stream type:Compound streams / video stream
Audio compress:G.711
Audio bit rate:8-16kbps
Triple bit streams:Support
Video resolution: 1280*720P,704*576P,352*288P,176*144P
Video flame rate:1-30 frames/second
Heartbeat mechanism:Support
Password protection:Multi-level protection on password
Intellectual alarm:Mobile detection,video shielding,video loss,network breakdown,abnormality in storage
Basic functions:One-key reset, password protection
Network Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS,FTP,802.1x
Audio input:1 channel
Audio output:1 channel
Network port:1 pc, RJ45 10M/100Mbps self-adaptable Ethernet port
Serial port :1 pc, standard RS485 serial port,optional
Alarm input:1 channel switch,optional
Alarm output:1 channel switch,optional
OSD:Support
ONVIF:Support
Cell phone monitor:Support
Work Environment:Indoor or outdoor
Power supply:DC12V/1.0A
POE power supply:Optional
Power consumption:<8W
Working temp:-10 °C ~ + 70 °C
Working humidity:10 ~ 85%
Body dimensions(L*W*H): 65*112*97 mm
Dimensions with bracket(L*W*H): 242x112x145 mm
Weight: 0.86Kg
