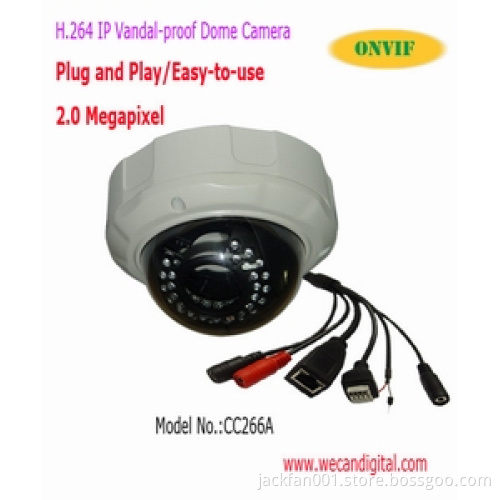

POE IP Camera

Get Latest Price

Min. Order:: 10

Min. Order:: 10

Delivery Time:: 20 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	50000pcs per month
Certificate:	CE,ROHS,ROHS

Product Description

Features:

1. Plug and Play IP Camera,automatic network configuration and P2P connection;

2. 2.0 Megapixel CMOS Sensor;

3. H.264 Main Profile compression algorithm;

4. 1600*1200P resolution real-time output;

5. Support ONVIF;

6. IR distance 20m;

7.Vandal-proof design.

Specifications:

Sensor type:1/3.2" 2.0 Megapixel APTINA CMOS sensor

Effective pixel:1600*1200P

Lenz:6mm or 8mm,1.0 Megapixel

Electronic shutter:1/25s-1/100,000s

Lowest luminance:Color: 0.1Lux at F1.2,Black&white: 0.01Lux at F1.2

Infrared Light:25pcs infrared lights, visual distance over 20m at night

Day-night switch mode:Support

Wide dynamics:Support

Video parameter:Saturation,brightness,contrast ratio and color tone can be adjusted by customer end or IE explorer

Video compress:H.264 Main Profile at Level 3.0

Video bit rate:16K-16Mbps, customized

Bit stream type:Compound streams / video stream

Audio compress:G.726

Audio bit rate:8-16kbps

Triple bit streams:Support

Video resolution:1600*1200

Video flame rate:15 frames/second

Heartbeat mechanism:Support

Password protection:Multi-level protection on password

Intellectual alarm:Mobile detection,video shielding,video loss,network breakdown,abnormality in storage

Basic functions:One-key reset, password protection, watermark technology

Audio input:1 channel

Audio output:1 channel

Network port:1 pc, RJ45 10M/100Mbps self-adaptable Ethernet port

Serial port :1 pc, standard RS485 serial port

Alarm input:1 channel switch

Alarm output:1 channel switch

OSD:Support

ONVIF:Support

Cell phone monitor:Support

Work Environment:Indoor

Power supply:DC12V/1.0A

POE power supply:Optional

Power consumption:less than 8W

Working temp:-10 ~ + 55 degree

Working humidity:10 ~ 85%

Dimensions(L*W*H):123*123*81mm

Weight:1.1 Kg
