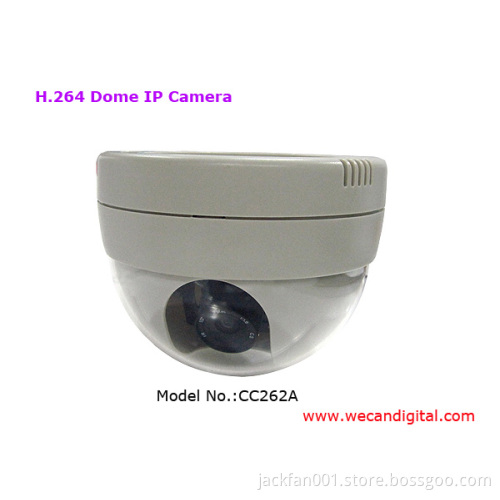

H.264 Megapixel Dome IP Camera

Features:
1. 1.3M pixels HD camera;
2. 1/3" line scanning digital CMOS and advanced DSP technology;
3. H.264 Main Profile compression algorithm;
4. 1280*720P resolution line scanning real-time output.

Specifications:
Sensor type:1.3M pixels line digital CMOS sensor;
 Effective pixel:1280*720P;
 Lenz (optional) :4-9mm(optional);
 Electronic shutter:1/25s-1/30,000s;
 Lowest luminance:Color: 0.5Lux at F1.2 ,Black&white:0.05Lux at F1.2;
 Auto aperture:Not support;
 Day-night switch mode:Support;
 Wide dynamics:Support;
 Video parameter:Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer;
 Video compress:H.264 Main Profile at Level 3.0 / MJPEG optional;
 Video bit rate:16K-16Mbps, customized;
 Bit stream type:Compound streams / video stream;
 Audio compress:G.726, G.711 and ADPCM, optional;
 Audio bit rate:8-16kbps;
 Triple bit streams:Support;
 Video resolution:1280*720P, 800*600 optional;
 Video flame rate:PAL:1-25 frames/second, NTSC:1-30 frames/second;
 PTZ:support;
 Heartbeat mechanism:Support;
 IP auto pop-out:IP auto pop-out at customer end;
 Password protection:Multi-level protection on password;
 Intellectual alarm:Mobile detection,video shielding,video loss,network breakdown,abnormality in storage;
 Basic functions:One-key reset, password protection, watermark technology;
 Audio input:1 channel, RCA port (LINEAR);
 Audio output:1 channel, RCA port (LINEAR);
 Video output:1 channel, BNC port;
 Network port:1 pc, RJ45 10M/100Mbps self-adaptable Ethernet port;
 Serial port:1 pc, standard RS485 serial port;
 Alarm input:1 channel;
 Alarm output:1 channel;
 WIFI network:Not support;
 3G network:Not support;
 Cell phone monitor:Support;
 Wireless encryption protocol:Not Support;
 Power supply:DC12V/2.0A;
 POE power:optional;
 Power consumption:less than 8W;
 Working temp:-10 ~ + 55 degree;
 Working humidity:10 ~ 85%;
 Dimension:D130mm, H110mm;
 Weight:0.36Kg.
