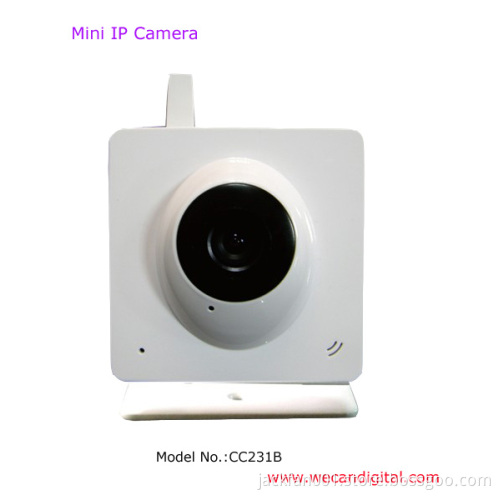

Mini IP Camera

1. Wireless;

2. Storage:Support Micro-SD(TF Card) , 8G Max.;

3. support IE & mobile phone control;

4. CE, FCC;

Specifications:

Operating System:Embedded OS;

CPU: 32Bit RSIC Embedded Processor;

Image Sensor: CMOS,VGA;

Min. Illumination: 0.2Lux;

White Blance: Auto;

Lens: 8mm(default) , Visual angle: 62 degree(Typical);

IR Distance: 12 IR LED, 15m;

Image Compression: MPEG-4 / MJPEG;

Signal:Digital Signal, Progressive Scan;

Max. Frame rate: 30fps at 640x480;

Image Resolution: 640x480(VGA), 320x240(QVGA), 160x120(QQVGA);

Image Setting: Brightness, Saturation, Contrast Hve could be adjust;

Audio: Built-in 1ch audio input;

Audio Gain: Auto(AGC);

Network Interface: RJ-45 10/100Mbps;

Delay Time:  less than 500Msec at LAN;

Support multi protocol: TCP/IP HTTP, IGMP, DHCP, FTP, PPPoE, NTP etc.;

Wireless Technology: WIF802.11b/g(optional);

RTSP: Live video and audio via 3G Mobile Phome;

(Support Nokia Sybian S60 system, Windows mobile system);

Simultaneous Viewers:  20;

Support IP address: Satic IP address, dynamic IP address, PPPoE;

Video / Snapshot: Three options: Auto, alarm, motion AVI/3GP for video format, JPG for image format;

Storage:Support Micro-SD(TF Card) , 8G Max.;

Alarm:Motion Detection, Threshold;

Detection Area :Support full screen;

Alarm Sending :Support image, video as FTP file;

Operating System :Microsoft Win98/SE/ME/2000/XP, Vista,Internet Explorer5.0;

Authentication :Password/ Administrator/ General User;

DDNS :Embedded DDNS System, Support up to 10 DDNS services;

Exterior Material :Plastic;

Work Environment:Indoor;

Power:DC12V/1A;

Operating Temperature:5 to 45 degree;

Operating Humidity:20 to 80% ( Non-condensing);

Dimensions :W85*D85*H50mm;

Weight:140g
