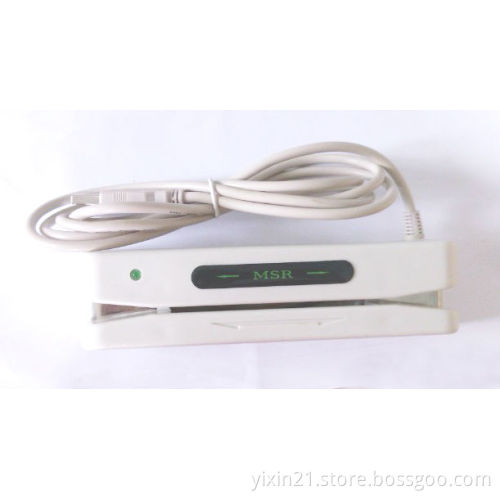

USB Universal Magnetic Stripe Card Bidirectional Reader

Product Description

Brief introduction:
MSR12R serial magnetic card reader is USB interface magnetic card reader that can read magnetic card/ bankbook. It has low power consumption, strong interference resistance etc. Compatible with Widows\ Linux \Mac OS System. User can set data with or without start character, end character, enter key etc. through switch button at the bottom.

Features:
 Bi-direction read capability, can read magnetic card and bankbook, speed 15-120cm/sec
 Conforms to ISO CA-DMV AAMVA  standard.
 Compatible with Widows Linux Mac OS system
 LED lamp indicates read card status(optional sound alarm)
 User can set start character, end character,enter etc.
 Long life magnetic head, over 800,000 passes
 Provide customized service

Specifications
Magcard standard:  ISO7811
Interface: USB
Power supply:  DC5V±0.5V
Static current:  50mA(max)
Dimension:  170 * 45 * 45 mm
USB Cable length:  1.5m
Weight  About: 150g

Environmental Condition
Operation temperature and humidity  0~70,0~90%RH
Storage temperature and humidity  -30~70,0~ 95%RH

Application:    banking system  POS terminal   ID authentication  Attendance recording
