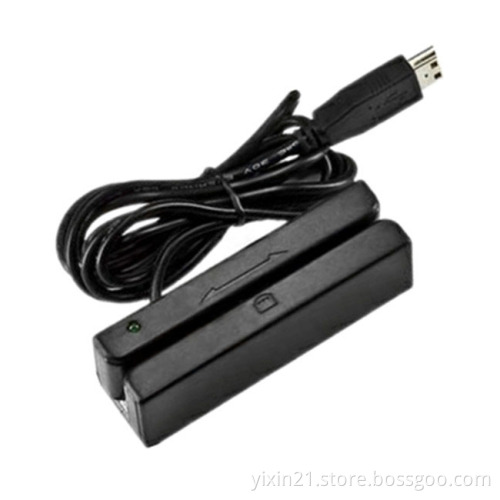

Magnetic stripe card reader

Hi/Lo-co Magnetic Stripe Card Reader track1,2,3
Features
LED indication
Compliance with ISO 7811/7812 standard
Low power consumption, power supplied by computer
Keyboard , RS232 and USB interface for selection
F2F decoded

.
Application
POS terminal
Membership management system
Inquiry system
ID authentication

Specification
Magcard standard: ISO7811/7812
Magnetic track position: ISO1(1ATA)  ISO2(ABA) ISO3(MINTS)
Recording density: 210BPI 75BPI 210BPI
Recording characters: 79 characters 40 characters 107 characters
Power supply: DC +5V5%
Current: 65mA(max)
Magnetic head function: Read magnetic track width 1.5mm
Card thickness: PVC 0.760.08mm
swipe speed: 15~120cm/sec
Accuracy rate: Above 99.5%
Telecom Interface: USB ,RS232 or PS2 interface
Operation location: Indoors
Head life: 800,000 passes
Weight: About 90g
Dimension: 90 * 27 * 28 mm
Cable length: 1.5m
Environmental Condition
Operation temperature and humidity:-20 oC ~70oC    0~90%RH
Storage temperature and humidity:-30 oC ~70oC   less than 95%RH
