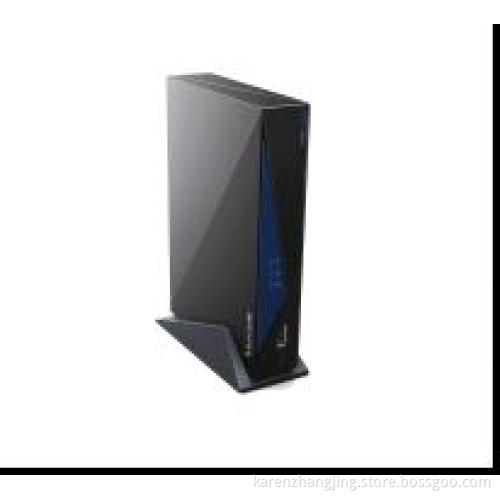

WHDI TRANSCEIVER

This device is designed to transmit HD audio and video signals from your HD equipment to your HD TV or monitor without the use of wires. Use an HDMI lead(not supplied) to connect the transmitter to your High Definition device, such as a Cable/Satellite Box, HD Set-Top Box, Blue-Ray DVD player, or Game Console.
Use a second HDMI lead(not supplied) to connect the receiver to your HDTV or HD monitor and your ready to go.

Main Features:

(1) support WHDI 1.0, HDMI 1.3, with CEC function;
(2) support 1080P60Hz video resolution or UXGA
(3) Support 192kbps audio stream(AC-3 or DTS);
(4) Support deep color(36 bit RGB) format;
(5) Work in 4.9~5.9 GHz with DFS (Dynamic Frequency Selection) function;
(6) No Latency for securing HD video/HD video game
(less than 1 ms typical);
(7) 40MHz Band width, Build in high performance antennas
(OFDM & MIMO technology);
(8) Support IR blasting function(NEC, RC5);
(9) HDCP 2.0 encryption techniques;
(10) Full home range(LOS 30m) and penetrate 2~3 concretes
(11) Support USB HID forwarding transmit;
(12) Low power consumption in standby mode(<0.1A typical);
(13) FCC, CE, RSS, ERP, RoHS compliant.

Packing contents:

1 X WHDI Transmitter
1 X WHDI Receiver
2 X Clip on Stands for Vertical Mounting
2 X DC Power Adaptors
1 X USB A-A Lead
1 X Infra Red Transmitter Eye
