electric bus 23 seats DN-23 with CE Approved
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
Detail Description

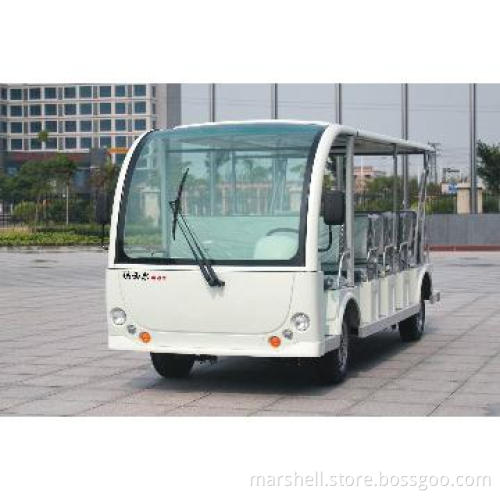

Electric Bus 23 seats DN-23 with CE Certificate:
| Drive system: | |
| Battery | 6V216AH*12,two packs |
| Motor | 72V10KW,DC motor |
| Controller | Curtis controller, 72V400A |
| Differential | Whole style steel rear axle , reduction ratio: 12:49 |
| Charger | 20A/72V full automatic high frequency charger |
| Suspension: | Macpheron strut suspension |
| Brakes | Four wheels hydraulic braking system and independent parking brake |
| Passenger capacity | 23 |
| Performance Data: | |
| Range (km) | 60 |
| Max. speed (km/h) | 20-25 |
| Minimum turning radius (m) | 6 |
| Max. Grade ability (loaded) | 20% |
| Brake peformance | 10% |
| Overall dimensions(mm) | 6300*1810*2230 |
| Max. loading weight(kgs) | 1200 |
| Net weight(kgs) | 2570 |
| Chassis | Steel |
| Wheel base(mm) | 2960 |
| Ground clearance(mm) | 100 |
| Quantity per Container | 2PCS /40HQ |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES Ask For Sample |
| FOB Port | Foshan,Guangzhou,Shanghai |
| Packing Info | Container order, remove the canopy and package in the protective material. Sample order, packaged in the individual steel shelf and the protective material. |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
