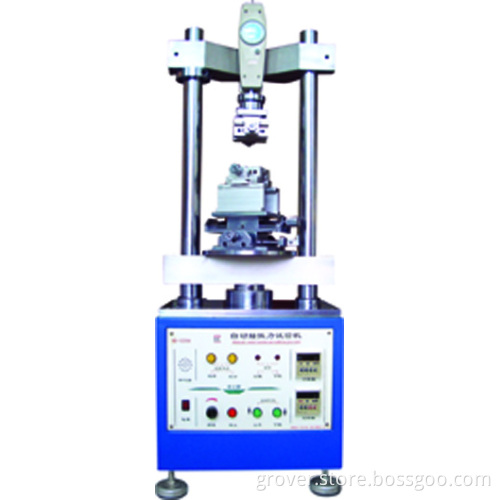

HD-1220A Automatically Inserts&Withdraw Force Tester
Product explanation:
This machine is used to perform the inserts&withdraw force test and life-span test of linkers and plugs. This machine can measuring the biggest force automatically.
If this machine is controled by a computer, test date will be collected and printed automatically.
Technical parameter:
|
Power source
|
AC 220V 50Hz.
|
|
Biggest load
|
50kg.
|
|
Biggest replacement
|
150mm.
|
|
Speed
|
10-200mm/min.
|
|
Test angle
|
0~200.
|
|
Sensor
|
Pull meter
|
|
Sensor precision
|
+-2%f.s.
|
|
Net weight
|
40kg.
|
|
Dimension
|
400 L,280 W,960 H,mm.
|
Standards:
UL1581
Test Objects:
Linker
Plug
