HONGDU TESTING EQUIPMENT CO.,LTD.

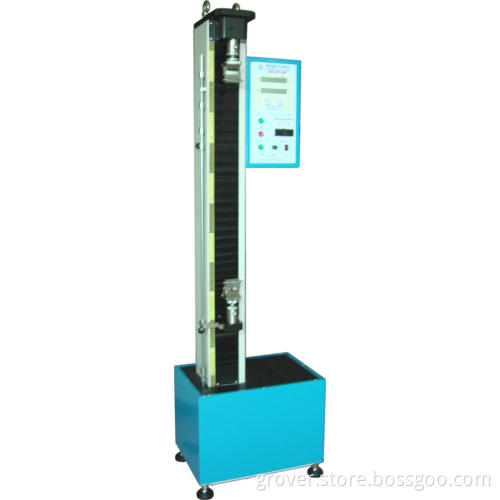

HD-ECT-100S Electronic Tensile Tester
Product explanation:
This machine is used to perform the test of resistance of pull, rupture rate, extension rate of materials used in many industrial fields, such as plastic industry, packing industry, footwear industry, ironware industry and the like.
Features:
* A precise displacement sensor and force sensor are in this machine.
* Wit used h big digital screen can show you the maximum force and the change of force dynamically.
* Test speed can be adjusted.
* Four test results will be recorded even you have zeroed.
* The extension rate can be sel ected to be tested by hands or automatically.
* The clamps can be changed to test different materials.
* OPTION: a printer and a computer to control this machine.
Technical parameter:
|
Power source
|
AC 220v 50Hz
|
|
Biggest load
|
1000N
|
|
Force precision
|
+-1%
|
|
Biggest displacement
|
800mm
|
|
Test speed
|
0~600mm/min
|
|
Speed precision
|
+-2%
|
|
Driver
|
AC motor
|
|
Clamp
|
configured according to different industry fields
|
|
Safety
|
Upper&lower limit protect system
|
|
Exterior dimensions
|
550mm L, 360mm W, 1730mm H
|
Standards:
UL1581
