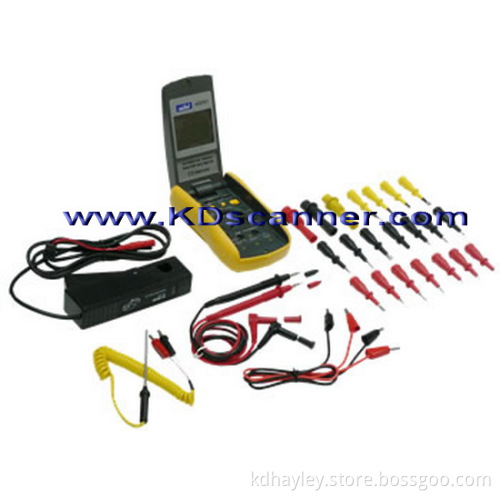

Automotive Professional Multimeter OBD91



Display:3 3/4 digits LCD with a maxreading of 3999

Back light / hold key

Safety: According to EN61010-1 protection class ,over voltage category(CAT  600V)

Power supply : 2?.5VAA batteries

Size: 145(H)?4(W)?0(D) mm

Weight: Approx. 500g(including battery and holster)

Quadratic signal output(reference are changeable)

Function

DC/AC Voltage,Resistance,DC/ AC Current,Capacitance,Frequency and Duty cycle

Temperature,Diode\ Continuity test

Tachometer, Dwell

ms-PULSE



Applications

Automotive sensor simulator

Measure output in sensors like Oxygen (O2), Coolant Temperature, Throttle Position (TPS),

Manifold Air, Pressure (MAP), Manifold Air Flow (MAF), etc

Check grounds, Voltage drops and continuity across Connectors, Wires, Cables, Relays Contacts, Lamps, Switches, etc

Check components like Alternator, Diodes, Relays Coils, Condensers, Ignition Coils, Spark Plug Wires, Magnetic Pick-ups, Motors, Switches, Fuses, etc
