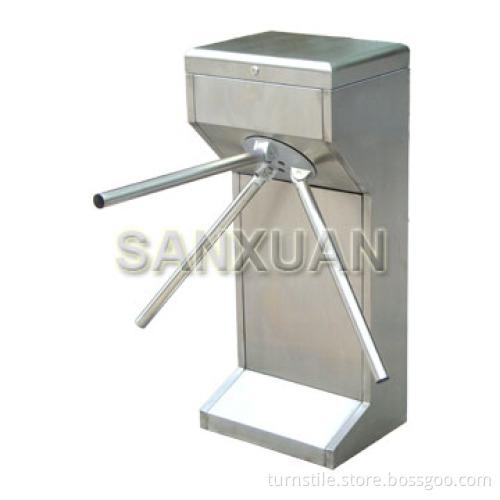

Manual Tripod Turnstile

SMT-230A free movement in one direction, automatic reset

SMT-230A is a mechanical manual turnstile. Users simply push the arms of the turnstile to get through the turnstile without any expensive electric motor. An anti backup function to prevent reverse rotation once the arm has move 60 degree form home.

Application:
SMT-230A is suitable for indoor or outdoor. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, government building, hotel, super market, stadium, game park bank and etc.

Function Description:
Anti backup function to prevent reverse rotation once the arm has move 60 degree form home.
Resetting mode: spring
Reset function: automatic reset
Operation: free movement in one direction - reverse direction locked

Framework Specification:
Framework: 304(default) /316 Grade Stainless Steel
Thickness of ply: 1.5mm / 2.0mm
Finish: Brushed surface (default)/ polishing surface
Dimensions: 420*330*990mm (Standard)
Arms length: 510mm; Arm diameter: 35mm (Standard)/ 38mm
The maximum tolerance of the pole: 20Kg
Working driving force of the pole: 3Kg
Working Environment: Indoor/Outdoor
Transit speed: 30-40 persons per minute
Temperature: -20 celsius to 60 celsius

Options:
Alternative Materials, Finishes and Custom Design
Finish and color optional
LED counter
