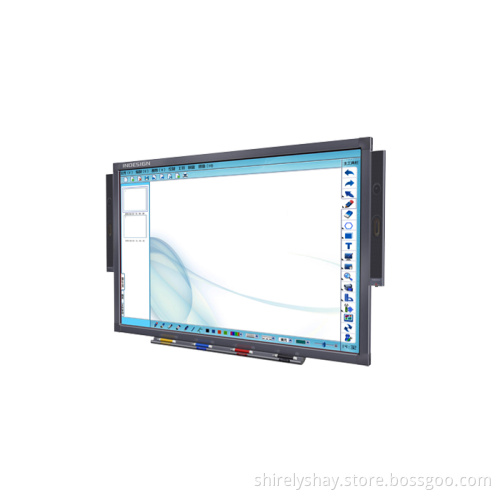

all in one interactive whiteboard

1. Specifications
Product Size            68 inch, 78 inch, 88 inch, 96 inch, 120 inch and etc.
Working Temperature        -5~60

2. Optional Accessories
Stand Mobile                             Height-Adjustable Floor (Optional)
Wall-Mounted Bracket                Standard Accessories
Pen Tray                                    Intelligent Pen Tray (Optional)
Pointer                                       Intelligent Laser Pointer
Digital Education Class             Optional
Touch Screen Support               Free systems Integrators Support
Second SDK                    Providing the big clients with free technical support.
Realizing Principle            NXT
Power                               15W*2

3. Wireless Model
         Item                    Specification        Min                 Type               Max
AC input Voltage         Single phase      100V         110V/220V         240V
AC input Current         Single phase
AC input Frequency    Single phase     47Hz           50Hz/60Hz       63Hz
Working Voltage                  DC               11.5V               12V              12.5V
Working Current                  DC               300mA
Working Frequence       2400MHz         2480MHz
Frequency Space                 6
Transmission Distance   Clearing        50m
Working Enviroment         -20              504.



PC Model
CPU                                    Intel   N270   1.6GHz
EMS Memoty                      2G DDRll Memory bank
Hard Disk                            160G
Network Card            Internal wireless network card IEE802.11b+g,Ethernet adaptive card
Display core             VIA/S3G UniChrome Pro II IGP
Standard interface      USB2.0 port*2,VGA port,RJ45,Binaural Headset Jack
Electric Power Source         DC20V port

Functions of the individual parts
1. Speaker model
Professional audio equipment solves the problem that traditional whiteboard can’t phonate and ends up interactive board being mute for ever.
During using, it is convenient to play the audio in computer and prepared courseware so that teachers teach better.
The effect of audio is excellent. The propagation distance is longer.

6. Adaptive model of the Interactive Whiteboard
Adaptive model      Diagonal Size        Projector ratio
 E-68                            60”                        4:3
 E-72                            72”                       4:3
 E-78                            72”                       4:3
 E-88                            88”                       4:3
 E-88M                         82”                      10:7
 E-88WS                      88”                       16”9
 E-96WS                      90”                        16:9
  E-108                        108”                       16:9
7. Advantages
1. Saving the space greatly.
2. Decreasing the troublesome of installing equipment.
3. Adopting one-click operating method, which starts all equipments.
4. It is convenient to move the board, at the same time it also moves the pc, audio box and wireless equipment.
5. With the function of audio. You needn’t deploy the audio box. The board itself is a audio box, and the sound effect is excellent.
6. Built-in PC. It has the function of pc, small volume and light weight. Even though it is integrated with the board, it won’t increase the volume and weight. And it is low consumption and low noise.
7. Built-in wireless equipment.
8. Hiding all lines behind the board. The overall is quite beautiful.
9. The integrated pc, audio box and wireless equipment are compatible to all size of board.
10. You needn’t purchase the separate parts so that you can reduce the cost greatly.
Of course, traditional whiteboard can realize the same function with all in one machine when it is connected to PC, audio box and wireless equipment. But we will find that too many lines which are big and small, long or short and the parts are also scattered and occupy much space, which will affect the whole equipment’s aesthetic. But all in one machine is different from the last one. You won’t see many lines. Because all the machine are connected together and you just need one power cord and open the pc, then you can use it.
