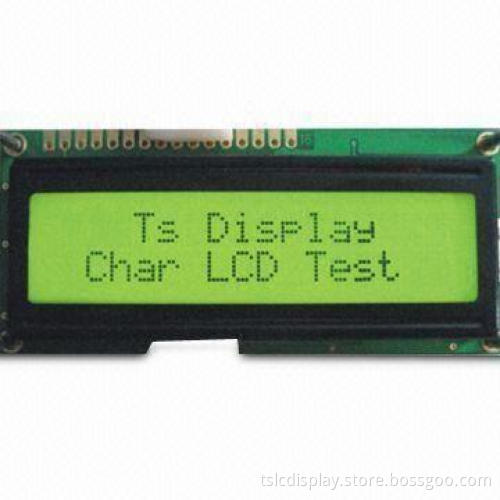

character LCD display module

 Key Specifications/Special Features:

• Structure: COB with metal frame
• LCD display modes: STN-YG, positive, transflective, 6H
• Driving method: 1/16 duty, 1/5 bias
• Backlight: yellow or green
• Control IC: S6A0069 or equivalent
• Outline: 84.0 x 44.0 x 13.5mm (maximum)
• Viewing area: 61.0 x 15.8mm
• Active area: 56.2 x 11.5mm
• Dot pitch: 0.6 x 0.7mm
• Dot size: 0.55 x 0.65mm
• Operating voltage: 0 to 6.0V
• Temperature:
  • Operating: -20 to 70°C
  • Storage: -30 to 80°C
