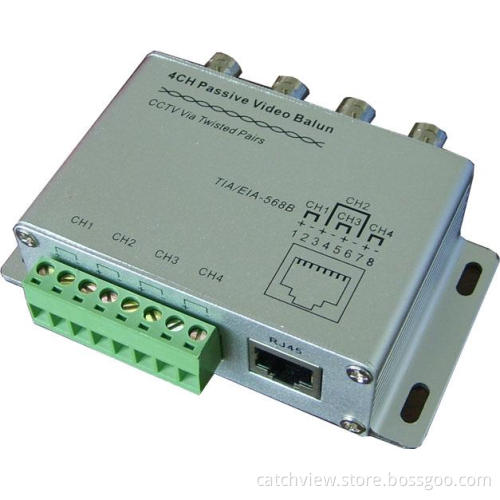

CCTV 4CH Passive Video Balun (CV-VB804F)
1. Full-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP video receiver
3. 60 dB crosstalk and noise immunity
4. NTSC, PAL and SECAM video formats
5. No power required
6. Built-in transient suppression protection
7. Frequency response: DC-8MHZ
8. Attenuation: 0.5dB typ
9. Connectors: Female BNC, RJ45 and terminal blocks
10. CMRR (Common Mode Rejection Ratio): 60DB
11. Impedance: BNC: 75ohm; RJ45/Terminal: 100ohm
12. Dimension: 105mm*58mm*29mm (excluding connectors)
13. Weight: 139g
14. Material: Aluminium-alloy
