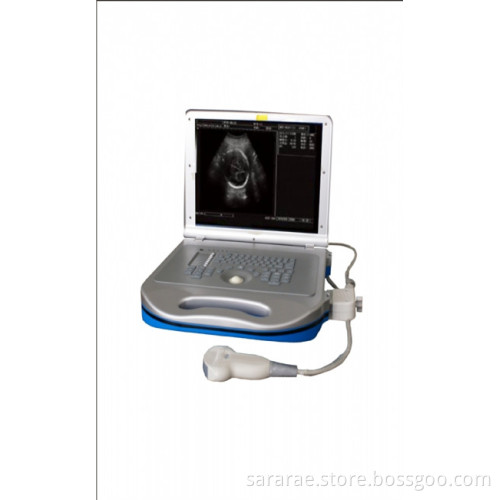

Portable Ultrasound Scanner

Full Digital & LCD Technology
High-frequency beam-former to ensure best resolution of the image.

Dynamic logarithm compress, TGC control and wave filtering.

8 Gamma correction curves, pre-procession, transitional frame, histogram,  interpolation, digital scanning (DSC), post-processing, etc.

4-sector dynamic focusing, four focus points,four focus points can be operated independently or combined freely to change the focus position.

15 inch TFT LCD. no flickers.

Back-lighted Silica keyboard and trackball

Powerful  Functions:
Dual-direction 356-frames cine loop, 39-image built-in memory.

Versatile image as BMP, JPG and  AVI can be transferred between scanner and any computer via U-disk. Both frozen and live image can be stored and load on U-disk freely.

Biopsy line is available,  adjusted manually.

Video printer can be connected with it.

Powerful Software Packages:
Distance, Perimeter, Area, Volume (ellipse method), Angel, Heart Rate, EF rate.

8 methods (GS,CRL,BPD,HC,AC,FL,HL,OFD,LV,AFI) to measure fetal age, weight and EDCG (Expected Date of Child Birth)

Software packages including Obstetrics, Gynecology, Urology, Small parts, the reports generated automatically.

Easily Operating Program
Roll-down menu operation, three layer maximum each.

Needed Short-cut keys designed on keyboard.

System message on the screen instructing furture operation.

English or Spanish language sel ectable.

Wide-frequency Probe:
R40 Convex Probe (2.0~5.0 MHz)

L40 Linear Probe (5.0~7.5 MHz)

R10 Transvagional Probe (4.5~6.5 MHz)

Micro-convex Probe (4.5~6.0 MHz)
