A4 A3 F4 photocopier paper sheeting machine and packing machine

This machine can cut roll paper into A4 A3 legal paper etc, if you want to know more information, please contact with miss Amy (mobile: 0086 158 8968 1847)

This machine can cut roll paper into A4 A3 legal paper etc, if you want to know more information, please contact with me (mobile: 0086 13714830643)

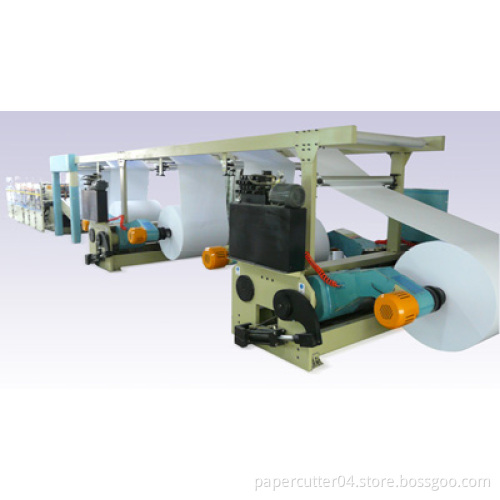

4-pocket cut-size copy paper sheeting and wrapping ream machine

This series of machine is used to cutting Big paper roll into A4, A3, B5 and 8.5*11 inch sizes, We also can design according to customers requirement, such as legal size, letter size etc..

Model: CHM-A4-4

MAIN SPECIFICATIONS:
Paper Width: Gross width 900mm, net width 840mm
Cutting numbers: 4 cutting-A4 210mm (width)
Diameter of: Paper roll: Max. 1200mm. Min. 600mm
Diameter of: Paper core: 3 or 6 inches or depend on the demand of clients
Paper weight: 60-100gsm
Sheet length: 297mm
Ream amount: 500 sheets. Height: Max.62mm
Max. Speed of production: 120m/min(depend on different paper)
Max. Numbers of cutting: 404cutting/min
Output of the ream: 3.2 times/min
Load of cutting: 400gsm

Cutting accuracy: about 0. 2mm
Cutting requirement: constant speed, no break in reel, cutting all paper one time , eligible paper.
Drive: AC frequency conversion and step-less

Main power supply: 3*380V AC, 50HZ
Voltage: 220V AC/ 24V DC
Power: 32KW
Compressing air consumption: 300NL/min
Air pressure: 6 bar
Edge cutting: 2*10mm

optional parts:
Auto wrapping system

contact: Miss May

mobile:0086-13714830643

Cheung Kong machinery company
