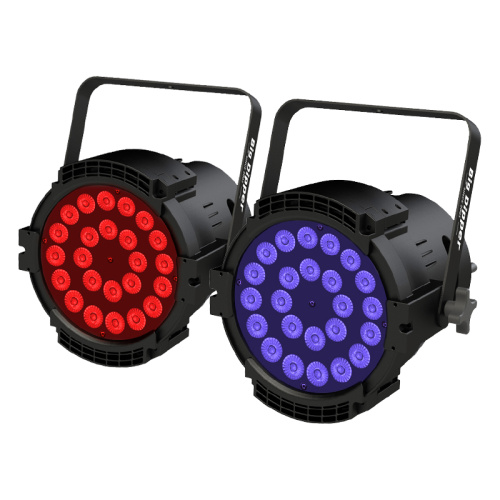

Big Dipper Full Color Waterproof IP55 24PCS 8W LED Par Wash Lighting Wedding Bar Stage Light Equipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Model :BDW2408-A

24*8W RGBW 4-in-1 Colorful Waterproof Par Light

Product parameters
Model: BDW2408-A	Rated power: 200W
Mode: Auto/Sound/DMX/Master-slave	Power supply: AC 100~240V 50/60Hz
Light Source: 24*8W RGBW 4-in-1	Channel: 4/8
Luminous Flux: Color Mixing ≥ 5100 lm	Dimmer: 0-100% Electronic Linear Dimmer
3m illumination 2380 lux	Beam Angle 45°
Color temperature: 100000K	Color rendering index: 77Ra
Product size: 230240254mm（Excluding the handle）	Carton Size: 525525325mm
Lifespan: 50000 hours	Packing: 4pcs
IP Grade:IP55	N.W. / G.W.: 14kg/15.5kg

DMX Channel mode function
Channel	Value	Functiom
CH1	000~255	General dimmer 0%~100%
CH2	000~255	Red dimmer 0%~100%
CH3	000~255	Green dimmer 0%~100%
CH4	000~255	Blue dimmer 0%~100%
CH5	000~255	White dimmer 0%~100%
CH6	000~255	Storbe speed,dimming 0%~100%
CH7	000~250	Dimming
	051~100	Color output
	101~150	Jump change
	151~200	Fade change
	201~250	Pulse transform
	251~255	Sound control
CH8	000~215	Sound control Red
	016~031	Sound control Grenn
	032~047	Sound control Blue
	048~063	Sound control White
	064~079	Sound control Yellow
	080~095	Sound control Violet
	096~111	Sound control Faint pink
	112~127	Sound control Cyan
	128~143	Sound control Light green
	144~159	Sound control Light blue
	160~175	Sound control RGB fully light up
	176~191	Sound control Faint yellow
	192~207	Sound control Light violet
	208~223	Sound control Ice blue
	224~239	Sound control RGBW fully light up
	040~255	Sound control to change color

Photochromic performance test
/	R	G	B	W	RGBW
Light source power	9.53W	51.71W	49.53W	50.07W	134.7W
Light source voltage	231.8V	231V	231V	231V	230.2V
Light source current	0.09mA	0.381mA	0.368mA	0.372mA	0.96mA
Luminance flux	42.3lm	1833.4lm	448.3lm	1781.8lm	3871.6lm
Color temperature	1000K	7968K	100000K	6350K	100000K
Color rendering index	31.3Ra	0.8Ra	18.4Ra	74.4Ra	77Ra
Wave length	621.9nm	524.8nm	461.8nm	473.1lm	482.4lm
