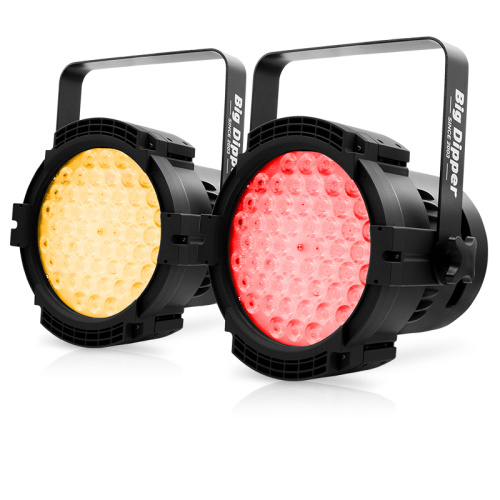

Big Dipper led full color wash stage light bar wedding performance waterproof face light seven color lights

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Model :BDW5404-A

54*4W RGBW 3-in-1 Colorful Waterproof Par Light

High light beads

_________________

54*4W RGB 3-in-1 Colorful
Waterproof Par Light

_____________

Power supply:
AC100-240V 50-60Hz
Rated power: 200W
Lifespan: 50000 hours

3m illumination

1810 lux

__________

Beam Angle 47.2°

Luminous flux ≥3900 lm

__________

0~100%

Electronic linear Dimmer

__________

	Imported bead __________ Imported Cree lamp beads, High brightness, Strong stability, High light conversion, Rate, small calorific value, Long life.
Electronic circuit waterproofing technology __________ Good power module, electronic circuit waterproofing technology, provide electronic stable, save electronic.
	Intelligent temperature control system __________ Real-time monitoring of aluminum substrate temperature through temperature sensing chip.
Constant current split motherboard __________ High stability, moisture-proof, anti-oxygen, anti-corrosion. PCB board surface waterproof process,
	Good 2IN1single cable __________ American Standard UL Certified 22# Double shielded signal cable， Tinned oxygen free copper material, wire diameter 0.33 square. Plug waterproof grade IP67, on-line 20 sets do not heat.
Fall resistance __________ Good heat resistance, impact resistance is 2-3 times of the traditional shell.
	Good waterproof performance __________ Protection level reaches IP55， Can meet the needs of various weather and scenes.
High strength clamp __________ Clamp use high strength alloy, strong bearing capacity, light weight, easier installation process.

Product parameters
Model: BDW5404-A	Rated power: 200W
Mode: Auto/Sound/DMX/Master-slave	Power supply: AC 100~240V 50/60Hz
Light Source: 54*4W RGB 3-in-1	Channel: 3/7
Luminous Flux: Color Mixing ≥ 3900 lm	Dimmer: 0-100% Electronic Linear Dimmer
3m illumination 1810 lux	Beam Angle 47.2°
Color temperature: 100000K	Color rendering index: 43.1Ra
Product size: 230240254mm（Excluding the handle）	Carton Size: 525525325mm
Lifespan: 50000 hours	Packing: 4pcs
IP Grade:IP55	N.W. / G.W.: 14kg/15.5kg

DMX Channel mode function
Channel	Value	Functiom
CH1	000~255	General dimmer 0%~100%
CH2	000~255	Red dimmer 0%~100%
CH3	000~255	Green dimmer 0%~100%
CH4	000~255	Blue white2 dimmer 0%~100%
CH5	000~255	Storbe speed,dimming 0%~100%
CH6	000~050	Dimming
	051~100	Color output
	101~150	Jump change
	151~200	Transform
	201~250	Pulse transform
	251~255	Sound-activated
CH7	000~030	Sound-activated Red
	031~060	Sound-activated Grenn
	061~092	Sound-activated Blue
	093~123	Sound-activated Warm-white
	124~154	Sound-activated Yellow
	155~185	Sound-activated Violet
	186~216	Sound-activated Change
	217~247	Sound-activated White
	248~255	Sound-activated Change color

Lamp high&low temperature testing
/	Ambient temperature
/	-25℃	+40℃
Whole machine power	160.3 W	160.3 W
Light flux	3900.3 lm	3900.3 lm
Color temperature	100000 K	100000 K
Color rendering index	43.1 Ra	43.1 Ra
Waves length	473.1 nm	473.1 nm
