Big Bipper IP55 4pcs 50W Cold Warm White Lights Bar Stage Lighting Equipment dj Waterproof 200W Par Light

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China Shenzhen
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE EMC, LVD, RoHS, PSE, CMIM, BIS, IRAM
Transportation:	Ocean,Land,Air,Express

Product Description

Model:BDW0450-A

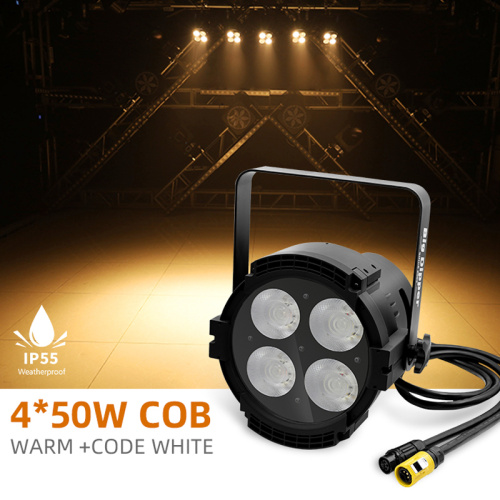

4*50W Warm/Cold white Waterproof COB Par Light

High light beads

____________

4*50W RGBW 4-in-1 Colorful
Waterproof Par Light

_____________

Power supply:
AC100-240V 50-60Hz
Rated power: 180W
Lifespan: 50000 hours

3m illumination

6200 lux

___________

Beam Angle 45.2°

Luminous flux ≥11500 lm

__________

0~100%

Electronic linear Dimmer

__________

	Imported bead ____________ Imported Cree lamp beads, High brightness, Strong stability, High light conversion, Rate, small calorific value, Long life.
Electronic circuit waterproofing technology ____________ Good power module, electronic circuit waterproofing technology, provide electronic stable, save electronic.
	Intelligent temperature control system ____________ Real-time monitoring of aluminum substrate temperature through temperature sensing chip.
Constant current split motherboard ____________ High stability, moisture-proof, anti-oxygen, anti-corrosion. PCB board surface waterproof process
	Good 2IN1single cable ____________ American Standard UL Certified 22# Double shielded signal cable， Tinned oxygen free copper material, wire diameter 0.33 square. Plug waterproof grade IP67, on-line 20 sets do not heat.
Fall resistance ____________ Good heat resistance, impact resistance is 2-3 times of the traditional shell.
	Good waterproof performance ____________ Protection level reaches IP55， Can meet the needs of various weather and scenes.
High strength clamp ____________ Clamp use high strength alloy, strong bearing capacity, light weight, easier installation process.

Product parameters
Model: BDW0450-A	Rated power: 180W
Mode: By manual/Auto/Sound/DMX/Master-slave	Power supply: AC 100~240V 50/60Hz
Light Source: 4*50W 2Warm white+2Cold white	Channel: 4/8
Luminous Flux: Color Mixing ≥ 11500 lm	Dimmer: 0-100% Electronic Linear Dimmer
3m illumination 6200 lux	Beam Angle 45.2°
Color temperature: 4106K	Color rendering index: 84.1Ra
Product size: 230240254mm（Excluding the handle）	Carton Size: 525525325mm
Lifespan: 50000 hours	Packing: 4pcs
IP Grade:IP55	N.W. / G.W.: 14kg/15.5kg

DMX Channel mode function
Channel	Value		Functiom
CH1	000~255		Master dimmer 0%~100%
CH2	000~255		Cold white1 dimmer 0%~100%
CH3	000~255		Warm white1 dimmer 0%~100%
CH4	000~255		Cold white2 dimmer 0%~100%
CH5	000~255		Warm white2 dimmer 0%~100%
CH6	000~255		Strobe speed from slow to fast
CH7	000~255	0~50	Dimming
		51~100	Color output	CH8 Control 15 colors
		101~150	Jump change	CH8 Jump change from slow to fast
		151~200	Fade change	CH8 Control Jump change from slow to fast
		201~250	Pulse change	CH8 Control Pulse change from slow to fast
		251~255	Sound control	CH8 Control the Sound control effect
CH8	000~255		Sound control to change color

Lamp high&low temperature testing
/	Ambient temperature
/	-25℃	+40℃
Whole machine power	156w	156w
Light flux	11419 lm	11419 lm
Color temperature	4106 k	4106 k
Color rendering index	84.1 Ra	84.1 Ra
Waves length	451 nm	451 nm
