Big Dipper Four Eyes Face Light 4PCS 40W Wedding Bar Performance Stage Refill Light

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Model :LC004-H

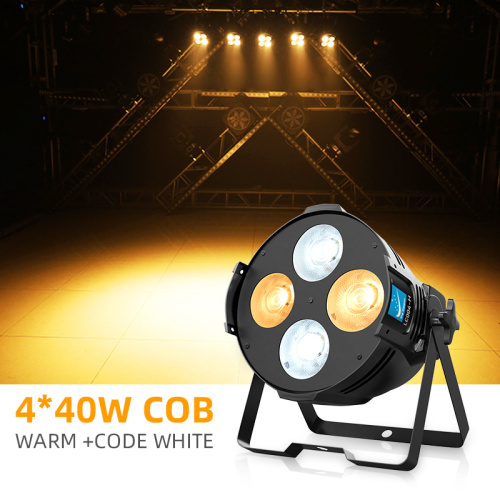

4*40W Warm/Cold white 4-eye COB Par Light

High light beads

______________

Hight brightness, strong stability,high Light conversion efficiency.

4*40W Warm/Cold white
4-eye COB Par Light

_____________

Power Supply : AC100-240V 50/60Hz
Rated Power : 160W
Source Source : 50000 H

3m illumination
5350 lux
___________

Beam Angle 42.5°
Luminous flux ≥8400 lm
___________

0~100%
Electronic linear Dimmer
___________

	High brightness light bead ________________ Imported Cree lamp beads, High brightness, Strong stability, High light conversion, Rate, small calorific value, Long life.
Good power module ________________ Provide electronic stable, save electronic, good safety.
	Simple operation ________________ Simplified electronic display screen, simple operation.
All copper lamp power cord ________________ It adopts pure copper plug, excellent conductivity, stable terminal, stable output, anti-freezing and durable, and maintain the power output of the lamp.

Product parameters
Model: LC004-H	Rated power: 160W
Mode: Auto/Sound/DMX/Master-slave	Power supply: AC 100~240V 50/60Hz
Light Source: 4*40W Warm/Cold white COB Par Light	Channel: 4/8
Luminous Flux: Color Mixing ≥ 8400 lm	Dimmer: 0-100% Electronic Linear Dimmer
Product size: 220210230mm(Excluding the handle)	Carton Size: 465465315mm
N.W. / G.W.: 10.2kg/12.3kg

8 Channel table
Channel	Value	Function
CH1	0~255	Master dimmer 0%~100%
CH2	0~255	Cold white1 dimmer 0%~100%
CH3	0~255	Warm white1 dimmer 0%~100%
CH4	0~255	Cold white2 dimmer 0%~100%
CH5	0~255	Warm white2 dimmer 0%~100%
CH6	0~255	Strobe speed from slow to fast
CH7	0~50	Dimming
	51~100	Color output
	101~150	Jump change
	151~200	Fade change
	201~250	Pulse change
	251~255	Sound control
CH8	0~255	Sound control to change color
