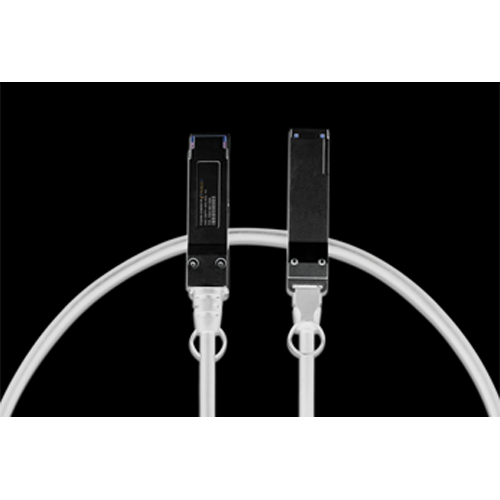

40G DAC/AOC Cable
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
With the widespread application of 40G networks, QSFP+DAC and AOC are essential components in 40G networks. It is an ideal short-distance connection solution that replaces optical modules. It has the advantages of low price and convenient use, which can help customers save a lot of network deployment costs.
Specifications of 40G DAC/AOC Cable
P/N Product Description Data Sheet Data Rate(Gbit/s) TX RX TX_Min(dBm) TX_Max(dBm) RX_Min(dBm) RX_Max(dBm) Power Consumption Reach Temperature(degC)
PQS40-AOx18501M
(Up to 100m) 40Gbps QSFP+ Active Optical Cable √ 40G VCSEL PIN / / / / 1.5W
each terminal Up to 100m 0 to +70°C
PQS40-DAx18505M
(Up to 5m) 40Gbps QSFP+ Active High Speed Cable √ 40G / / / / / / 1.5W Up to 5m 0 to +70°C
PQS40-DAx401M
(Up to 5m) 40G QSFP+ to 4x10G SFP+ DAC √ 40G VCSEL PIN / / / / 0.02w Up to 5m 0ºC to +70°C
There are many optical module manufacturers, but we are one of the best choices for you.
