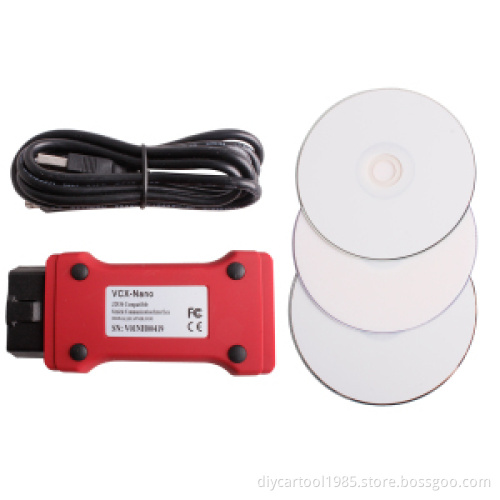

ALLSCANNER Nano VCM VCX

Newest Allscanner Bluetooth VCM VCX-Nano scanner for Ford,Mazda,LandRover and Jaguar

Specification:


Brand Name: AllScanner
Model Name: VCX Nano
Car Maker: Ford,Jaguar,Land Rover,Mazda
Item Type: Code Readers & Scan Tools
Place of Origin: Guangdong, China (Mainland)
Software version: IDS V75 JLR V130

Attention:
The software can not be updated online. If we have the newer version, we will send the newer software or the link to you for updating

PC Interface:

Support USB2.0 HIGH SPEED CONNECTION.
Support Bluetooth2.0 wireless connection.
Provide PC configuration tool,detect connection automatically,update fireware automatically.

Vehicle Interface:
1. Hardware integrated as J-1962 OBD-II connector , connect with vehicles without cable.
2. Support the following protocols:
   1) ISO9141(K-Line)
   2) ISO14230-2(K-Line)
   3) ISO15765(CAN)
   4) SALE-J1850PWM(Ford SCP)
   5) SALE-J1850 VPW(GM Class2)
   6) Single Wire CAN(GMLAN)
3. Support 3 wire CAN, 2 wire High CAN and Single wire CAN.
4. Programming voltage: 5v-20v  FEPs output.
5.  Support multi-channels work continuously , for example: 2 wire CAN or K-Line work at same time.
6. Large memory to increase date throughput, 32KByte can be reached by single transfer.

Accord with SAE-J2534
Fully compatible with SAE-J2534-1 & SAE-J2534-2.
Online ECU diagnosis and reprogramming.The same as the original tool.
High comparision of price and function,repeat to use,support with third party and OEM diagnostic application which was compatible with J2534.
