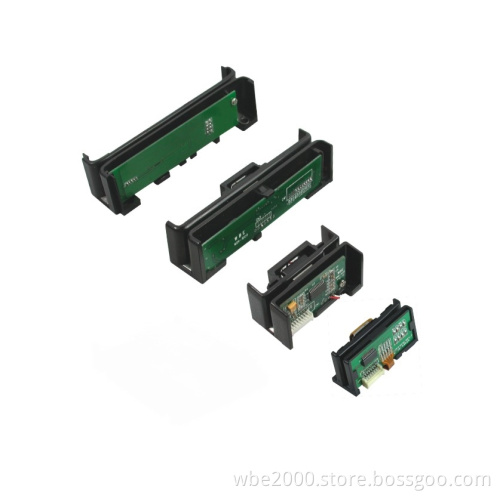

Magnetic card reader module
- Min. Order:
- 10
- Min. Order:
- 10
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description
| Features: | |
| ● Low power consumption, easy maintenance | |
| ● Compact design, small in size | |
| ● ISO 7811/7812 Standard | |
| ● Output F2F standard TTL signal | |
| ● Support magnetic card /bankbook | |
| ● Single track/Dual track/Triple track read | |
| Applications: | |
| ● POS terminal | |
| ● Bank system | |
| ● Access control | |
| ● Time attendance | |
| ● Membership system |
| Specifications: | |
| Function | |
| Interface | TTL |
| Decoder | F/2F |
| Operation speed | 15-120 cm/sec (6-50inch/sec) |
| Operation place | Indoor |
| Identify efficiency | Above 99.5% |
| Error rate | Less than 0.5%（JSE test card） |
| Recording density | 210 BPI 75 BPI 210 BPI |
| Card | |
| Card standard | ISO 7811/2 |
| Track | I(IATA), II (ABA), III (MINTS) |
| Track location | ISO1 (IATA), ISO2 (ABA), ISO3 (MINTS) |
| Card thickness | 0.76 ± 0.08 mm |
| Track width | 1.5mm |
| Head life | At least 500,000 times |
| Power | |
| Voltage | 3.0~5.5V DC |
| Current | Less than 2.0mA (Single Track), 5mA (Dual Track), 7mA (Triple Track)/5V |
| Fluctuation | Less than 50mVp-p |
| Environment | |
| Operate temperature and humidity | -10°C~50°C, 20~90% RH |
| Storage temperature and humidity | -30°C~70°C, Less than 95% RH |
| Physical characteristics | |
| Weight |
Approx. 45g
|
