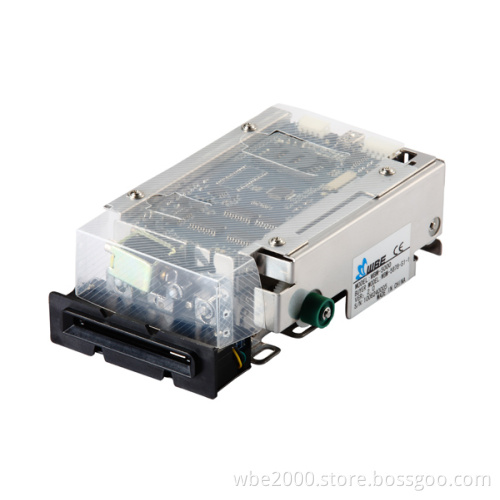

Motorized card reader

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Features:
● EMV approval
● Magnetic card reader only, IC/RF card read & write, SIM card function
● Power off quit card function, front and back swallow and spit card
● Modular structure, easy to disassemble, easy maintenance
● Precision run card channel

Specifications:
Function
Cassette life	>100,000 times (valid insertion)
Interface	RS232/USB
Baud rage	9600(default)~115200 BPS
Life time	Belt, 700,000 cycles
	Gear, 700,000 cycles
	Head, 1,000,000 times min
	IC card contact, 300,000 times min
	Actuator, 500,000 times min
Card box capacity	185pcs/0.76mm standard card
Card collection box capacity	38pcs±2pcs(0.76mm standard card)
Card quantity alarm	7～50pcs±2pcs
Card feeding speed	470mm/sec±20%
Card
IC card (read/write)	ISO7816-2, ATMEL, SIEMENS, CPU card: t=0 & t=1
Magnetic card (read only)	ISO7810 ID-1,7811/1/2/3/4/5/6
RF card (read/write)	ISO14443-A
Card dimension	55*86mm
IC card processing circuit	EMV standard
Electrical performance and protocol	EMV standard
Magnetic card misread rate	≤0.2%（Standard magnetic card, strong magnetic card）
Power
Input voltage	12VDC ±5%
Current	Entering card<400mA, Reverse motor operation＜1A
Environment
Temperature	Operation: 5°C~ 50°C; Storage: -20°C~ 70°C
Humidity	Operation: 0%~ 90% RH; Storage: 0% ~ 95% RH
Physical characteristic
Dimension	215mm(L)×65mm(W)×61mm(H)
