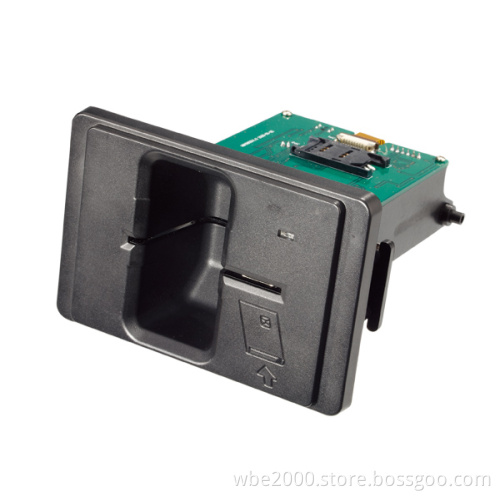

Full-insert magnetic IC card reader writer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Applications:
● POS terminal
● Tax system
● Medical and insurance system
● Bank system
● Oiling machine
● Hotel door locking system

Features:
● Automatic card lock
● Manual/auto eject card
● IC card read/write, magnetic card read
● RS-232/USB interface
● SAM card option


Function
Magnetic card type	ISO7811/7812
IC Card Type	ISO7816, T=0 , T=1 CPU card
IC Card Type	ATMEL, SIEMENS series card
Head life	> 500,000 times
IC cassette life	> 300,000 times
SAM cassette life	> 600,000 times
Decoder	F2F (FM)
Track location	ISO1 (IATA), ISO2 (ABA), ISO3 (MINTS)
Record density	210BPI, 75BPI, 210BPI
Record Characters	79, 40, 107
Card thickness	0.76 ± 0.08 mm
Error rate	< 0.5%
Interface	RS-232/USB
Power
Voltage	Hi-co, 12V ± 5%; Lo-co, 5V ± 5%
Current	<100 mA (Read); <300 mA (Max)
Environment
Temperature	Operation: 0°C~60°C, Storage: -20°C~60°C
Humidity	Operation: 20%~90% RH, Storage: 5%~95% RH
Physical characteristics
Weight	Approx. 210g
Dimension	118mm(L) x 78mm(W) x 35mm(H)
