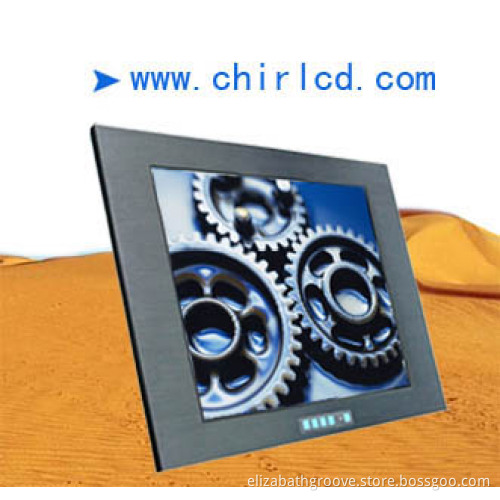

12.1 Sunlight Readable Lcd Monitor(LMB121WM)

Chirtech Sunlight Readable Series LCD monitors enhance display application readability in terms of high brightness, dimming range and viewing pleasure.

With the new technology of adoption LED as the light source for the backlights, we provide you a new alternative to the traditional CCFL backlight display. LCD monitor with LED backlight is also environment friendly and has minimal power consumption.

It is designed to operate in extreme ambient light conditions. Such characteristics are superior to regular LCD PC & Monitor. These products can be used for special mounting applications, especially in POS, KIOSK, CAR TV& Navigation System, Automation, Information Terminal and Marine Field.

Chirtech also provides various options for you to choose among different resolution, interface, and optional characteristics.

Parameter:

Des LMB121WM
Panel Type
Active Display Area 246(H)mm*184.5(V)mm
Brightness 1000nit
Contrast Ratio 600: 1(typ. )
Resolution 800*600 (1024*768 optional)
Response Time 12ms
Backlight LED
Dimming range 10-100%
Viewing Angle (H)-70~70; (V) -70~70
Input Signal PC Connector: Analog input D-SUB-15pin Fh: 31KHz-80KHz Fv: 50Hz-75Hz
VIDEO NTSC/PAL Composite Video
1CH BNC In (Lever: 1.0V p-p/75ohm)
Optional S-Video, DVI, HDMI
Touch Screen (optional) Type 4-Wire or 5-Wire resistive
Interface USB or RS232
Resolution 4096*4096
Software Windows 7/Vista/XP/2000, Linus, Mac OS
Life Over 1 million
Surface 3H hardness
Power Input DC12V/3A
Operating Method 5 keys keypad OSD
Power Consumption Max. 25W
Operation Temperature -25~60
Operation Humidity 10%~80%
Storage Temperature -30~65
Storage Humidity 5%~85%
Case Material Alumium/Cool rolled steel
Net Weight 3.3kg
