Indoor HD P2 Led Screen Video Wall
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Transportation:
- Express, Ocean, Land, Air
- Port:
- shenzhen sea port, guangdong province, china
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 4000sqm/mon |
| Supply Ability: | 4000 Square Meter/Square Meters per Month |
| Payment Type: | L/C,T/T,Western Union,MoneyGram |
| Incoterm: | EXW |
| Certificate: | ISO |
| HS Code: | 8528591090 |
| Transportation: | Express,Ocean,Land,Air |
| Port: | shenzhen sea port,guangdong province,china |
Indoor HD P1.6 P1.8 P2 P2.5 led screen video wall
Indoor HD P1.6 P1.8 P2 P2.5 led screen video wall, Indoor led video wall have different solution according to client's exact indoor environment and usage, the important factor: led screen size, the viewing distance from led display to the audience.
Installation way: most client prefer wall-mounted, that mean make one steel structure fixed on the wall, then led scren fixed on the strucutre by screw. Then, how to do maintenance if one led screen part not work well? so, we design the led screen to be front service led display solution. that mean worker can do the installation and maintenance from front directly. and we will privide the profesional front service led screen tool.
Second installation way, make one stand strucutre, the structure stand on the floor, then led screen hanged on the structure.
HD LED vdie wall led screen, also have P1.25, p1.5, p1.6, p1.86 and P2 led screen solution. they have higher resolution. have better video effect. But, Price is also hgiher.
| Pixel Pitch | P1.25mm | P1.538mm | P1.667mm | P1.86mm | P2mm | P2.5mm |
| LED Package | Black SMD1010 | Black SMD1212 | Black SMD1212 | Black SMD1515 | Black SMD1515 | Black SMD2121 |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution | 256*128dot | 208*104dot | 192*96dot | 172*86dot | 160*80dot | 128*64dot |
| Cabinet Size | 640*480mm | 640*480mm | 640*480mm | 640*480mm | 640*480mm | 640*480mm |
| Cabinet Resolution | 512*384dot | 416*312dot | 384*288dot | 314*258dot | 320*240dot | 256*192dot |
| Cabinet Materials | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Cabinet Wegiht | 8KG/PC | 8KG/PC | 8KG/PC | 8KG/PC | 8KG/PC | 8KG/PC |
| Brightness | >600nits | >600nits | >600nits | >800nits | >800nits | >800nits |
| Refresh Rate | >3840hz | >3840hz | >3840hz | >3840hz | >3840hz | >3840hz |
| Max Power Consumption | 500W/sqm | 520W/sqm | 520W/sqm | 520W/sqm | 520W/sqm | 520W/sqm |
| Ave. Power Consumptio | 220W/sqm | 220W/sqm | 220W/sqm | 220W/sqm | 220W/sqm | 220W/sqm |
| Operating Humidity | 10% - 95% | 10% - 95% | 10% - 95% | 10% - 95% | 10% - 95% | 10% - 95% |
| Certificate | CE,ROHS,FCC,ACMA | |||||
| Life Span | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| Input Source | HDMI, DVI, AVI, MPEG,VOB, RM, etc) | |||||

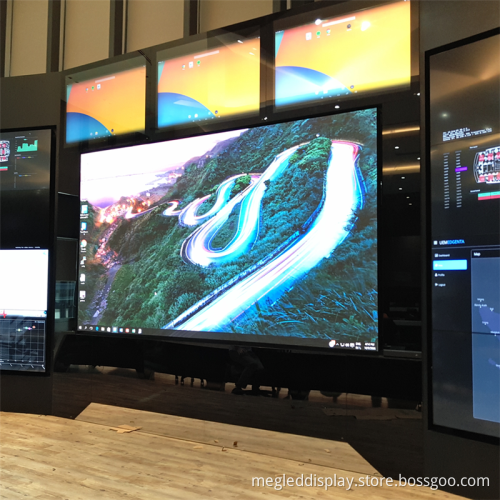

One big whole indoor P2.5 HD led wall led display is made of many small panel, many panel connected togehter by screw.
System Diagram
