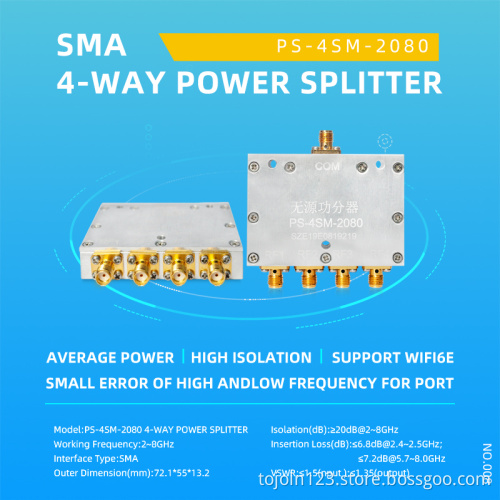

0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
  • 0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
  • 0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
  • 0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
  • 0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
  • 0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
0.8-8GHz precision 4 way power splitter Power Divider with SMA connector
0.8-8GHz precision 4 way power splitter Power Divider with SMA connector

0.8-8GHz precision 4 way power splitter Power Divider with SMA connector

$27.00 - $29.00/Piece/Pieces
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Incoterm: EXW
Product Description
Product Description

Specifications:

Parameter Min. Typ.   Max.
Frequency Range(GHz) 2 8
Insertion Loss(dB) 2.4-2.5GHz
(With distribution ratio )
6.5 6.8
Insertion Loss(dB) 5.7-5.9GHz
(With distribution ratio )
6.8 7.2
Isolation(dB) 20
Input VSWR 1.25 1.5
Output VSWR 1.25 1.35
Amplitude Balance(dB) - - 0.5
Phase Balance(°)  - - 5
Impedance(Ω) - 50 -
Connectors - SMA -
Power Capacity(W) 10 -
Operating Temperature(°C) -30 normal temperature +70
Physical Dimension(mm,+/-0.1)  — 72.1×55×13.2  —
