solar cable 6mm H1Z2Z2-K PV1-F

$0.80

≥5000 Meter

Min. Order:: 5000 Meter

Min. Order:: 5000 Meter

Transportation:: Ocean, Land

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1 million/week
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land
Port:	Shenzhen,Hongkong

Product Description

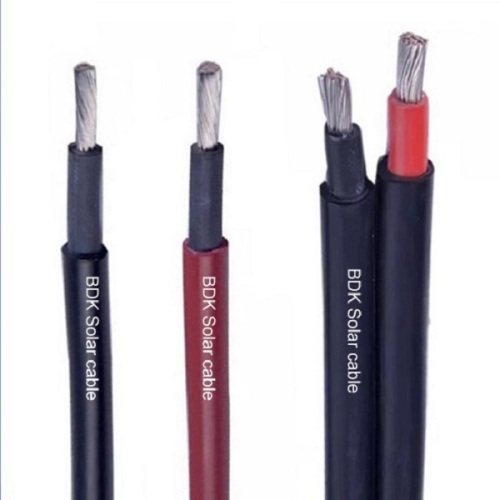

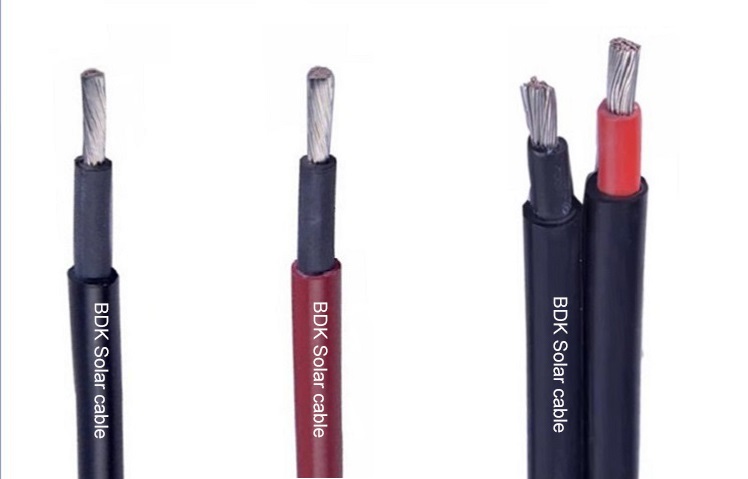

BDK pv cable, those solar panel cable approved by TUV SUD, as per EN50618 IEC62930 PPP59074A (Equivalent to 2 PfG 1169).

The solar panel extension cable is class 5 tinned copper conductor as per IEC EN 60228,

Polyolefin Copolymer electron-beam coss-linked insulation,

Polyolefin Copolymer electron-beam coss-linked sheath,

The approvals cover: PV1-F H1Z2Z2-K

single core: 1.5mm2, 2.5mm2, 4mm2, 6mmm2, to 240mm2

Twin cores: 2x1.5mm2, 2x2.5mm2 to 2x16mm2

The 6mm solar cable and other pv cable applicable Ambient Temperature: -40 ℃~+90 °C Max. Temperature at conductor: 120 ℃

These solar panel cables are typically used in photovoltaic (PV) systems, where they connect solar panels to inverters and other electrical components. 6mm dc solar cable are designed to carry DC (direct current) power generated by the solar panels to the inverter, which converts it into AC (alternating current) for use in the electrical grid or powering appliances.

Specification

Model Number	PV1-F H1Z2Z2-K
Standards:	EN50618 IEC62930 PPP59074A

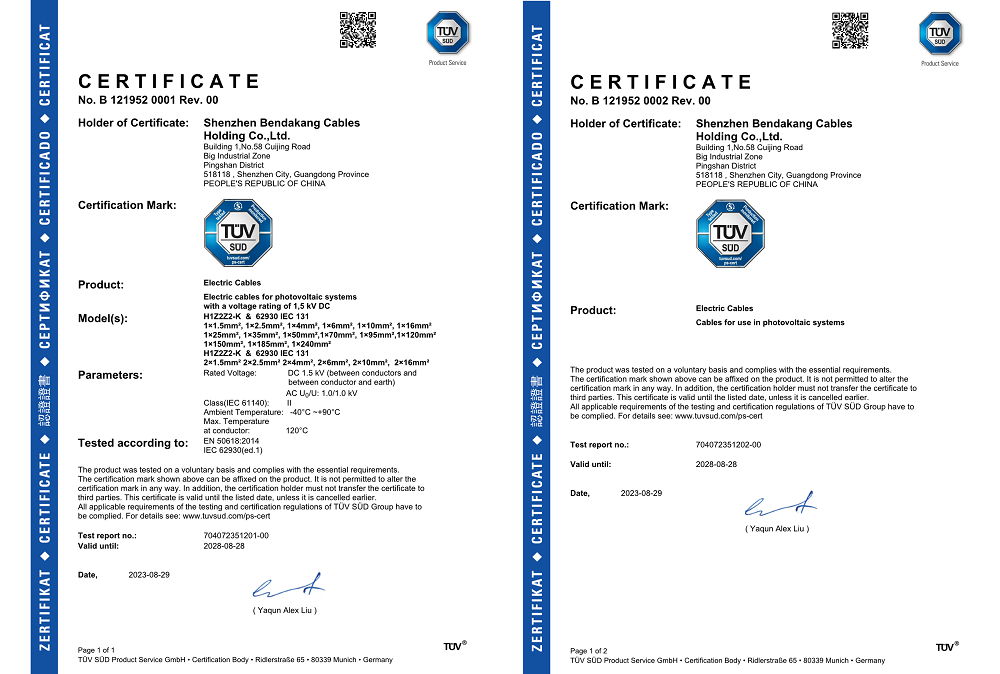

Approval	TUV SUD
Conductor Material	Class 5 tinned copper conductor as per IEC EN 60228
Insulation	Polyolefin Copolymer electron-beam coss-linked insulation
Sheath	Polyolefin Copolymer electron-beam coss-linked insulation
Cores	single core, two cores
Rated voltage	AC1000V DC1500V AC 1800V
Temperature Rating	-40°C to 90°C ,More than 25 Years
Application	Solar PV system

TUV Solar Cable As Per EN50618 IEC62930-1

Company introduction

Shenzhen Bendakang Cables Holding Co., Ltd, a leading solar pv cable, Electric Power Cable China manufacture, the main products include: Electric Power Cable, LV Power Cable, Solar Cables and other electric items.

The construction area cover 300,000 square meters, with around 350 workers, the annual turnover reach USD 0.45 Billion. We are the qualified supplier of State Power Grid, China Southern Power Grid and Vanke Group, Country Garden,ect and other large, medium partners around the world.
