TUV Approved H1Z2Z2-K Solar Panel Cable
-
$0.90≥5000 Meter
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land
- Port:
- Shenzhen, Hongkong, Guangzhou
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 1 million / week |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean,Land |
| Port: | Shenzhen,Hongkong,Guangzhou |
Product Description
Product Description

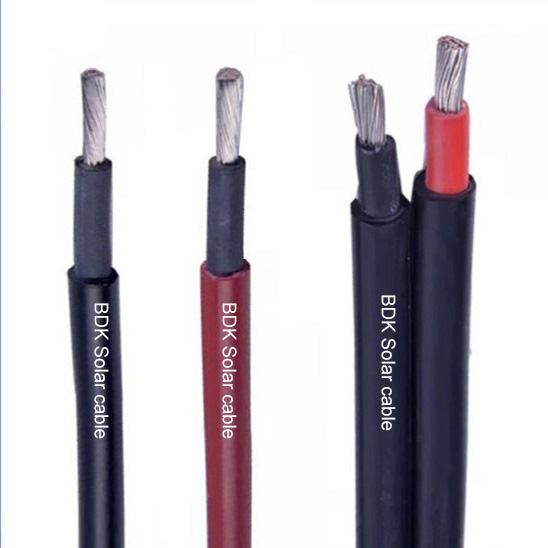

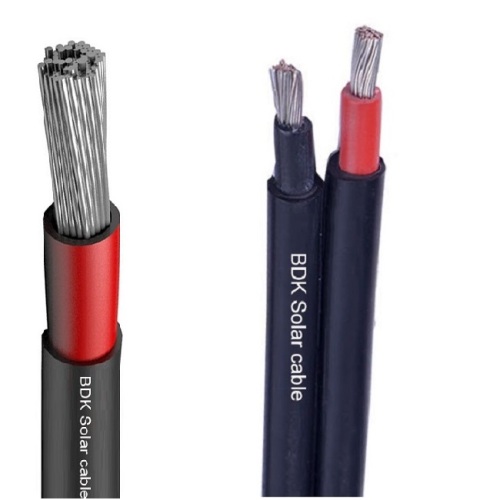

BDK solar cable, those solar wire cable approved by TUV SUD, as per EN50618 IEC62930 PPP59074A (Equivalent to 2 PfG 1169).
The approvals cover: PV1-F H1Z2Z2-K
single core: 1.5mm2, 2.5mm2, 4mm2, 6mmm2, to 240mm2
Twin cores: 2x1.5mm2, 2x2.5mm2 to 2x16mm2
The dc solar cable is class 5 tinned copper conductor as per IEC EN 60228,
Polyolefin Copolymer electron-beam coss-linked insulation,
Polyolefin Copolymer electron-beam coss-linked sheath,
The solar cable 6mm and other cable solar applicable Ambient Temperature: -40 ℃~+90 °C Max. Temperature at conductor: 120 ℃
These solar panel cable are typically used in photovoltaic (PV) systems, where they connect solar panels to inverters and other electrical components. Solar panel wire are designed to carry DC (direct current) power generated by the solar panels to the inverter, which converts it into AC (alternating current) for use in the electrical grid or powering appliances.
Company Introduction:
Shenzhen Bendakang Cables Holding Co., Ltd, a leading Electrical Cable, LV Power Cables manufacture, established in 1997, the construction area cover 300,000 square meters, around 300 workers, the annual turnover reach USD 0.45 Billion. We served customers around 60 countries, the clients include: China Southern Power Grid, Vanke, HUAWEI and other local&oversea corporations. Trust us, work with us, Welcome to take a visit.
Exhibitions&Visitings
The approvals cover: PV1-F H1Z2Z2-K
single core: 1.5mm2, 2.5mm2, 4mm2, 6mmm2, to 240mm2
Twin cores: 2x1.5mm2, 2x2.5mm2 to 2x16mm2
The dc solar cable is class 5 tinned copper conductor as per IEC EN 60228,
Polyolefin Copolymer electron-beam coss-linked insulation,
Polyolefin Copolymer electron-beam coss-linked sheath,
The solar cable 6mm and other cable solar applicable Ambient Temperature: -40 ℃~+90 °C Max. Temperature at conductor: 120 ℃
These solar panel cable are typically used in photovoltaic (PV) systems, where they connect solar panels to inverters and other electrical components. Solar panel wire are designed to carry DC (direct current) power generated by the solar panels to the inverter, which converts it into AC (alternating current) for use in the electrical grid or powering appliances.
| odel Number | PV1-F H1Z2Z2-K |
| Standards: | EN50618 IEC62930 PPP59074A |
| Approval | TUV SUD |
| Conductor Material | Class 5 tinned copper conductor as per IEC EN 60228 |
| Insulation | Polyolefin Copolymer electron-beam coss-linked insulation |
| Sheath | Polyolefin Copolymer electron-beam coss-linked insulation |
| Cores | single core, two cores |
| Rated voltage | AC1000V DC1500V AC 1800V |
| Temperature Rating | -40°C to 90°C ,More than 25 Years |
| Application | Solar PV system |
