TUV approved solar cable 6mm 4mm2
-
$0.90≥5000 Meter
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land
- Port:
- Shenzhen, Hongkong, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1 million/week |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,CFR |
| Transportation: | Ocean,Land |
| Port: | Shenzhen,Hongkong,Guangzhou |

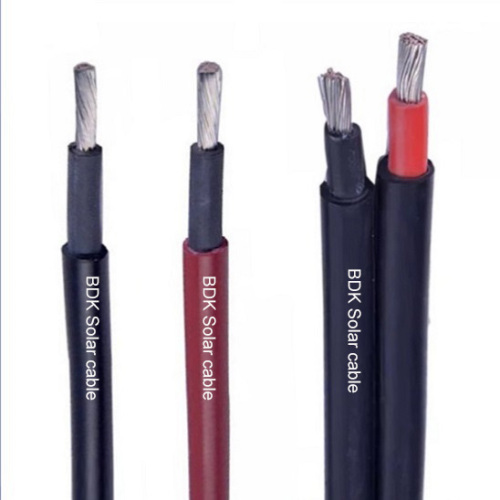

BDK solar cable, those solar wire cable approved by TUV SUD, as per EN50618 IEC62930 PPP59074A (Equivalent to 2 PfG 1169).
The approvals cover: PV1-F H1Z2Z2-K
single core: 1.5mm2, 2.5mm2, 4mm2, 6mmm2, to 240mm2
Twin cores: 2x1.5mm2, 2x2.5mm2 to 2x16mm2
The dc solar cable is class 5 tinned copper conductor as per IEC EN 60228,
Polyolefin Copolymer electron-beam coss-linked insulation,
Polyolefin Copolymer electron-beam coss-linked sheath,
which is designed for connecting PV system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
The solar cable 6mm and other cable solar applicable Ambient Temperature: -40 ℃~+90 °C Max. Temperature at conductor: 120 ℃ They have the characteristics of UV resistance, wears resistance, and aging resistance, the service life is more than 25 years.
| Model Number | PV1-F H1Z2Z2-K |
| Standards: | EN50618 IEC62930 PPP59074A |
| Approval | TUV SUD |
| Conductor Material | Class 5 tinned copper conductor as per IEC EN 60228 |
| Insulation | Polyolefin Copolymer electron-beam coss-linked insulation |
| Sheath | Polyolefin Copolymer electron-beam coss-linked insulation |
| Cores | single core, two cores |
| Rated voltage | AC1000V DC1500V AC 1800V |
| Temperature Rating | -40°C to 90°C ,More than 25 Years |
| Application | Solar PV system |
Shenzhen Bendakang Cables Holding Co., Ltd, a leading Electrical Cable, Electric Power Cable manufacture, established in 1997, the construction area cover 300,000 square meters, around 300 workers, the annual turnover reach USD 0.45 Billion. We served customers around 60 countries, the clients include: China Southern Power Grid, Vanke, HUAWEI and other local&oversea corporations. Trust us, work with us, Welcome to take a visit.
