XLPE SWA 2C+E & 3C+E 0.6/1.0kV Circular Cable

0.6/1KV XLPE SWA Armoured Circular Orange Cable description: 2 & 3 Core plus Earth Circular Cable, Copper Conductor, X-90 XLPE Insulated,

5V-90 PVC Sheathed, to AS/NZS 5000.1.and other types of.  2 Core + Earth 3 Core + Earth 35mm 95mm to 240mm,below for control,

monitoring circuits and protection circuits. The current domestic standard is Australia/New Zealand Standard AS/NZS 5000 ,

 Plastic Insulated Control Cable, and the export control cable adopts

AS/NZS 1125; AS/NZS 5000.1

3 & 4 core+earth, circular,Orange

0.6/1kV X-90 insulated,

PVC sheathed to AS/NZS 5000.1

Copper conductors, 90°C.

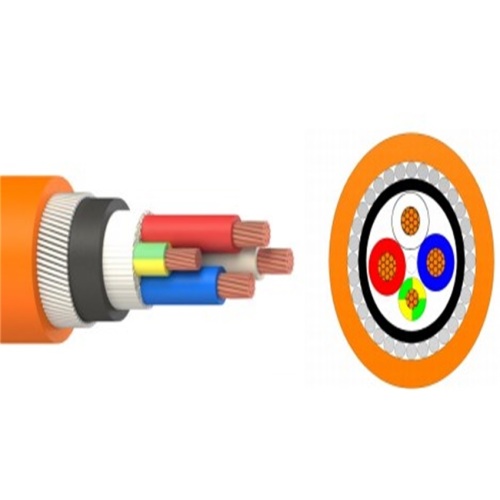

Multi Core PVC or XLPE SWA Orange Circular Armoured Cable 0.6/1KV

Technical Data:

Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2

sizes 10mm² to 120mm² refer to AS/NZS 5000.1

Conductor : Fine plain annealed copper

Insulation Material :XLPE/ V-90 PVC

Core colours : red, white, blue, gn/ye

Sheath Material : 5V-90

Armoured: Galvanized Steel Wires

Sheath Colour : Orange

Electrical Data:

Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V

for sizes 10mm² to 120mm² - 600/1000V

Test Voltage : 3.5kV/5min

Insulation Resistance : Min 5 Mohm/km

Mechanical data:

Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)

≥ 35mm² 6 x OD (fixed installation)

Temperature Rating : up to +90°C

Application:

SWA Orange Circular Cable - power and auxiliary control cables for use in power networks,

underground, outdoor and indoor applications and for use in cable ducting.--SWA Armoured Cable
